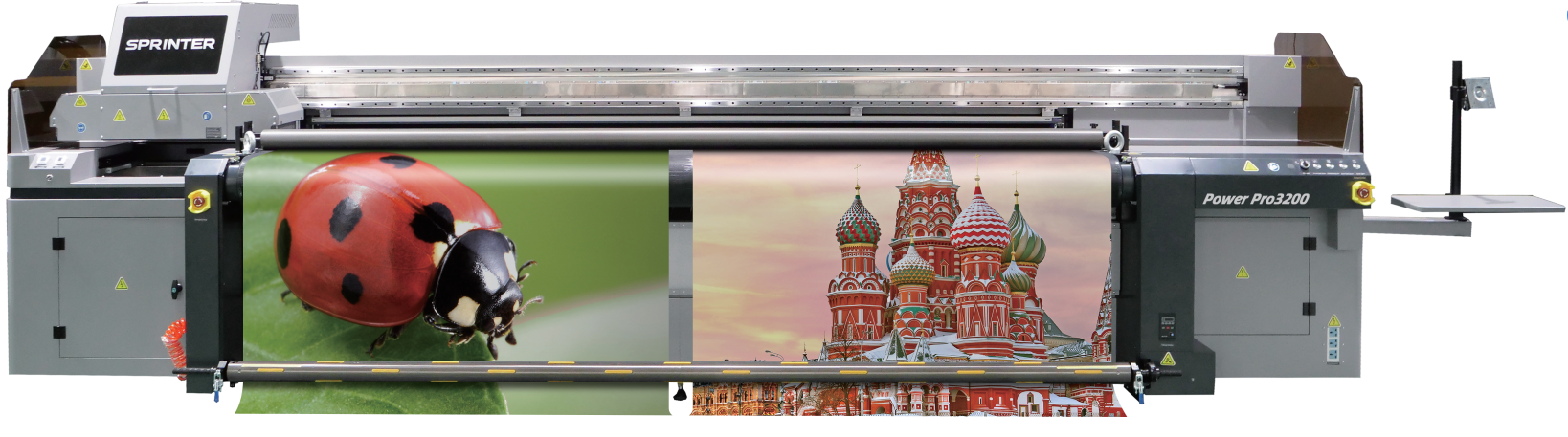

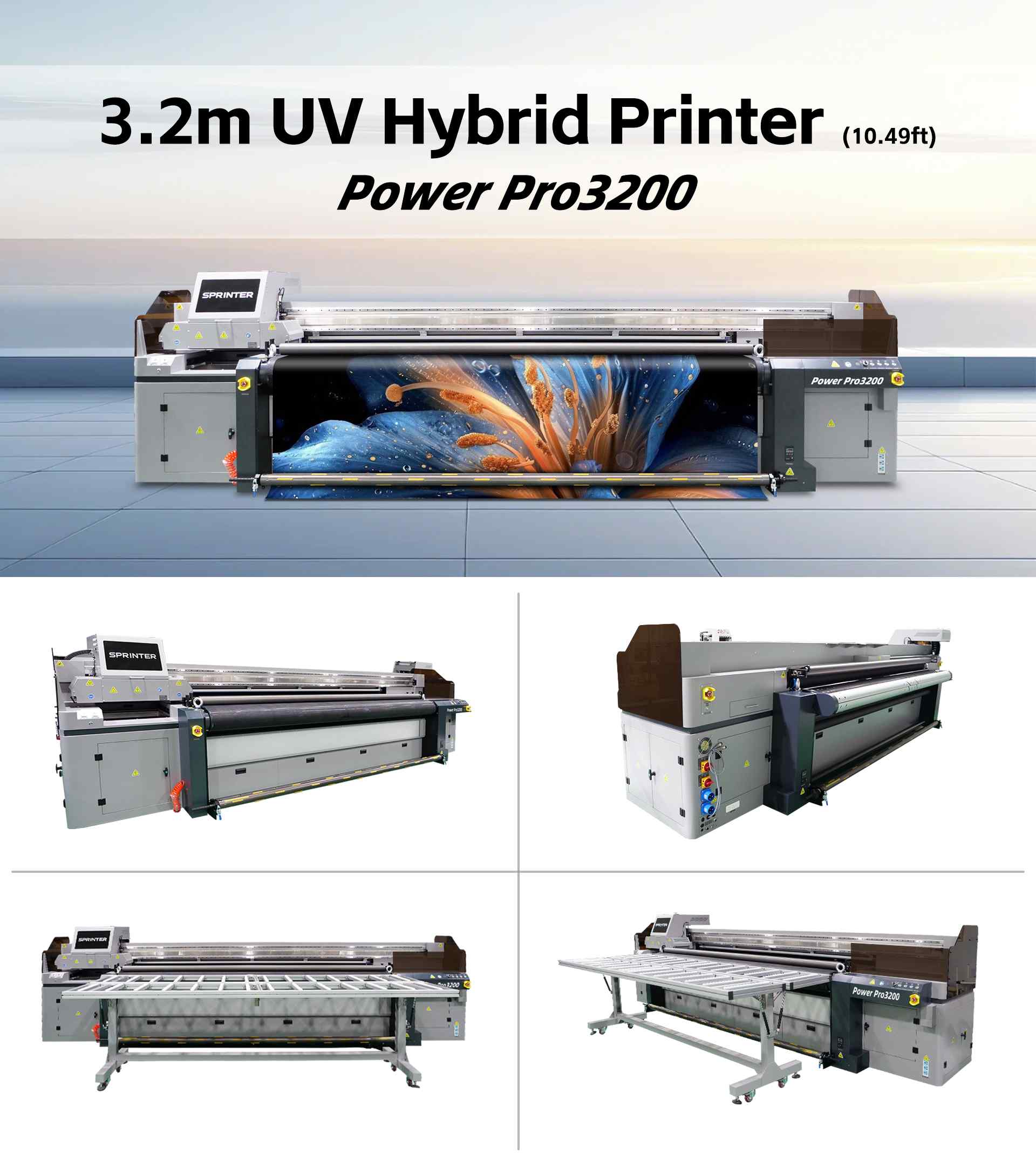

Power Pro 3200
3.2 Meters UV Belt-conveyed Hybrid Printer
POWER PRO 3200 is one of the most popular UV printer in the market. 3.2m width printing makes it suitable for most of the roll media. With external tables, it can print board material as well. It provides a perfect UV printing solution to customer.
Key benefits
New feeding up system with new balance system
Special belt conveyor
Flat material printing up to 35mm(1.37795in) thick
Special belt conveyor
Flat material printing up to 35mm(1.37795in) thick
Application
Kitchen Decor
Bar Decor
Interior Wall Decoration For Office Building
TV Feature Wall
Bathroom Decor
Interior Decoration
Exterior Wall Decoration
Wallcovering
Features

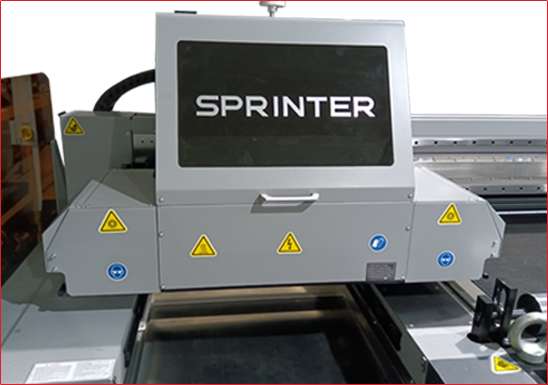

UV-LED Curing System
LED curing doesn't produce much heat. So heat-sensitive media can be printed and cured without material damage. The curing power is adjustable.Besides, UV-LED curing system also has a longer lifetime. And it is maintenance free and eco-friendly.

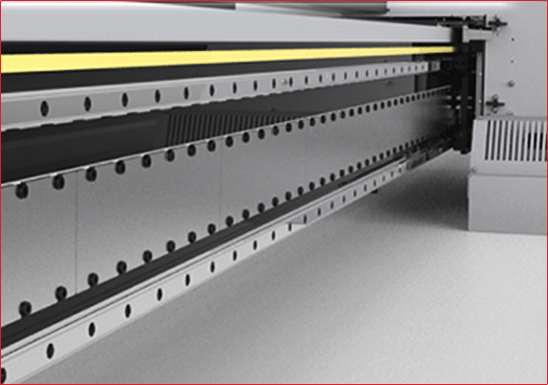

Magnetic Technology
Comparing to traditional servo motor+belt system, magnetic reduces transmission parts, cut down failures, and decrease maintenance rate. In particular, it provides higher speed for printhead moving, which increased productivity in a great scale.

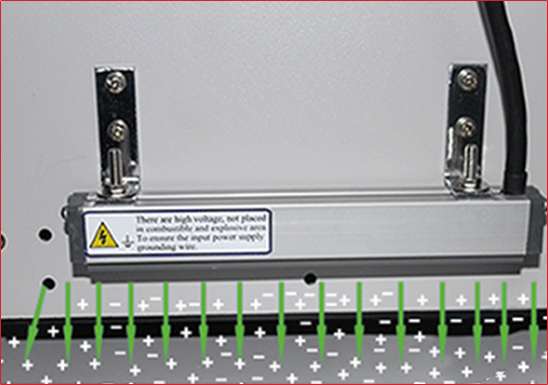

Statics Elimination
Statics exists on material, especial in a dry environment. With statics elimination system, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.

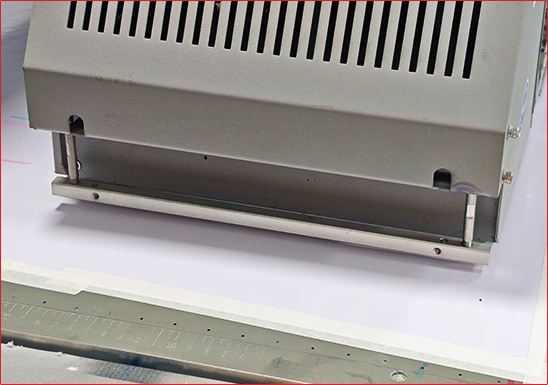

Auto Media Height Detection
It can measure the height of media and adapt to the height for print automatically. It can print media with thickness up to 110mm.

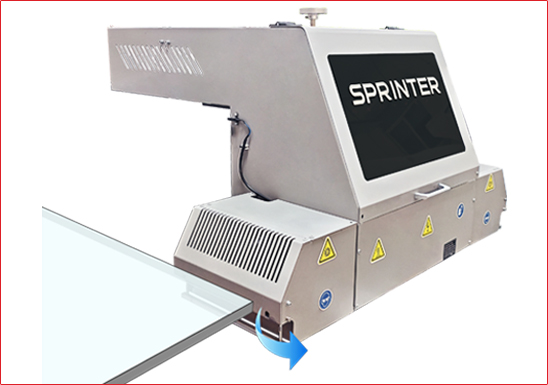

Anti-crush Protection
The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.
High-resolution encoder
The encoder on machine is metal encoder with resolution up to 1um. lt can ensure printheads moving exactly where it directed. Make sure each ink-dot drop down the right position.

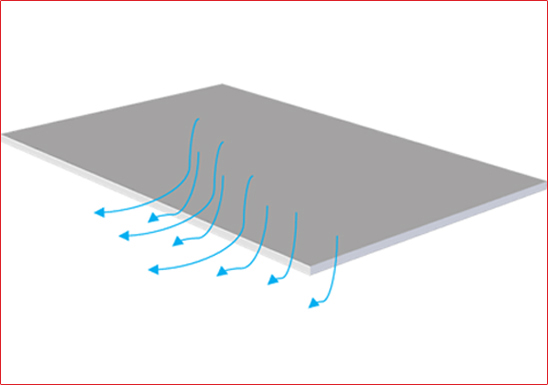

Flatbed Vacuum System
Media will be hold on flatbed with vacuum system flat and firmly in place. It flatbed has been divided into 8 different areas for media of different sizes.

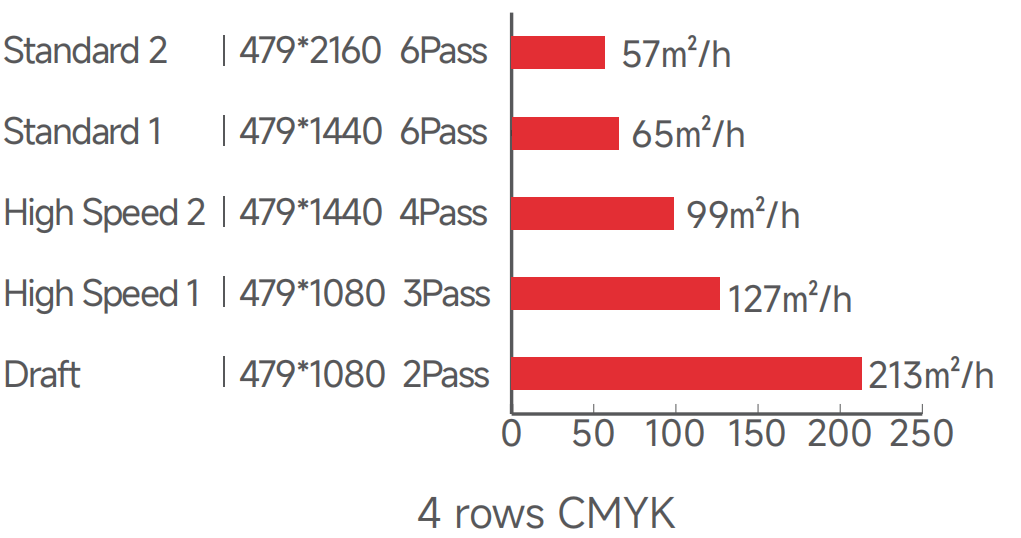

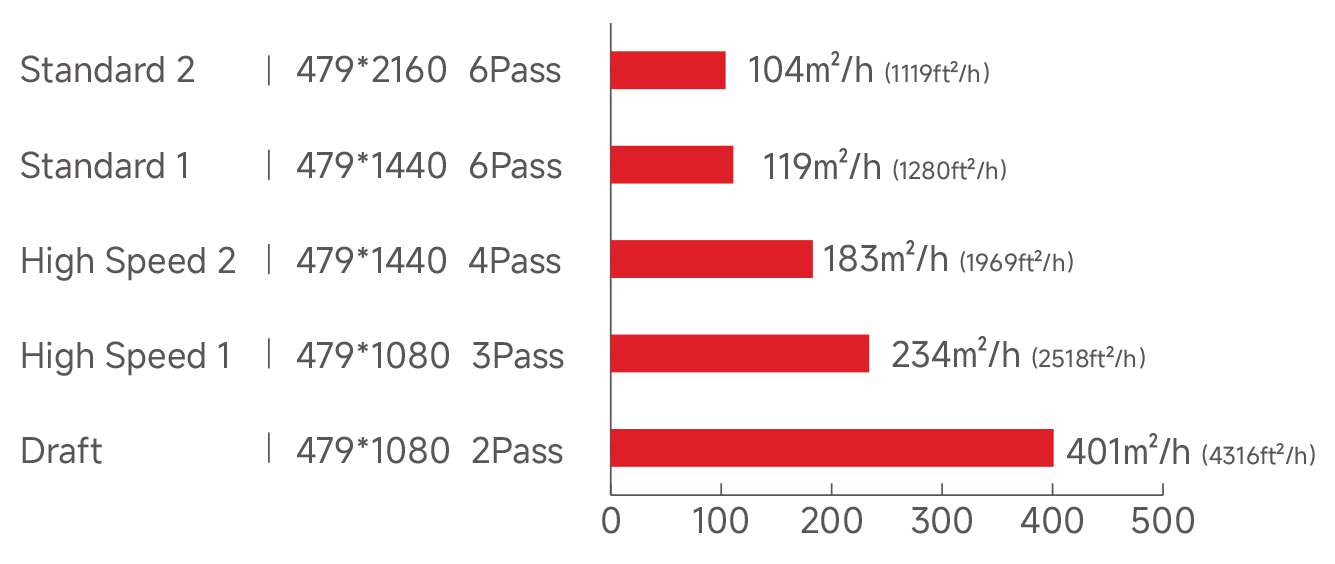

Print Speed
6 rows CMYK

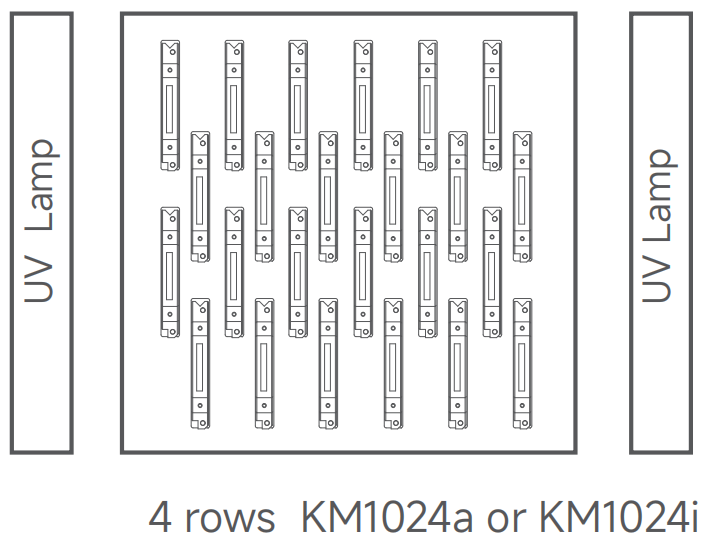

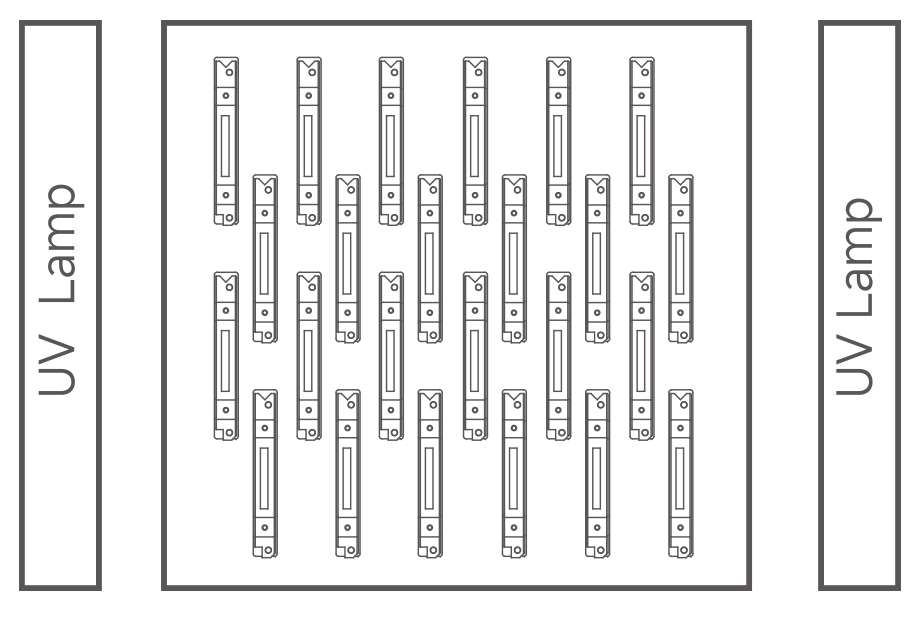

Printhead Soleplate
4 rows KM1024a or KM1024i (option:Ricoh G5/G6)

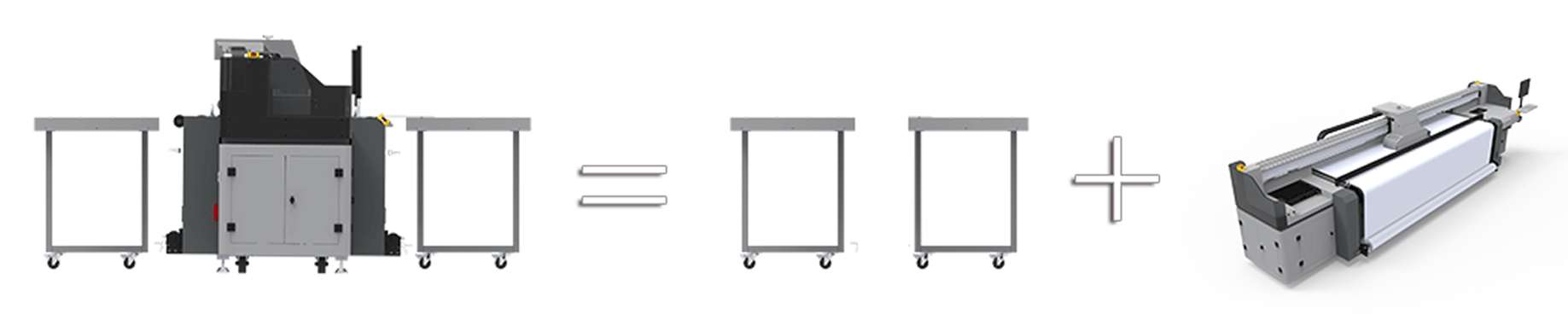

Printing board(Option)

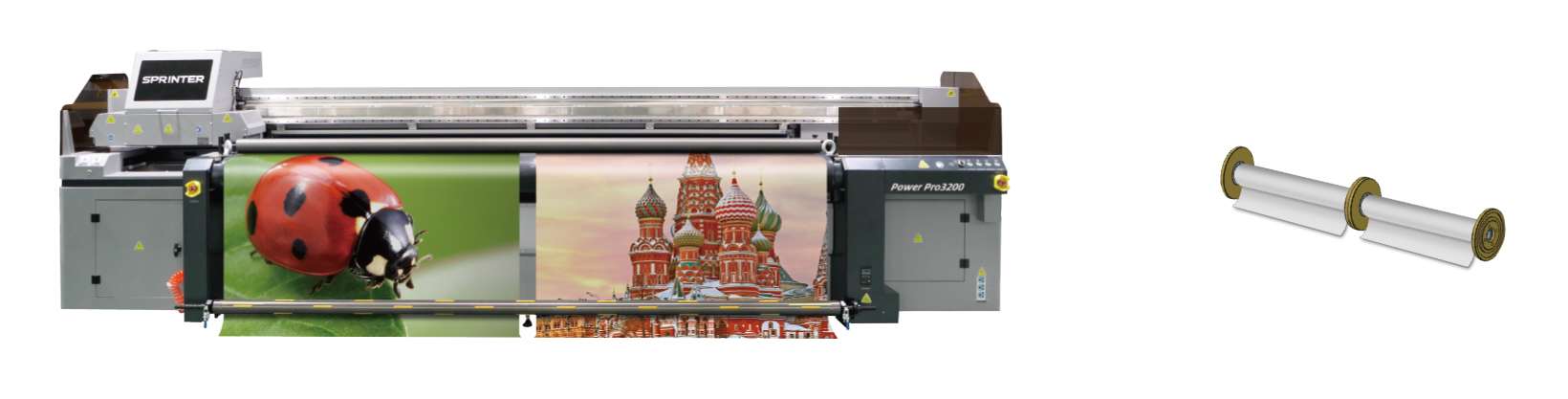

Two-roll printing two times productivity
Taking full advantage of the 3200mm(10.49ft) printing width, 2 media rolls (1.27m/50inch for each roll) can be mounted for simultaneous printing. Different ( or same) print jobs can be printed on the 2 separate rolls.
Users can select a preferred width separately for each roll. Power Pro3200 helps to shorten delivery time and reduce workload.
Users can select a preferred width separately for each roll. Power Pro3200 helps to shorten delivery time and reduce workload.
* The option "2 feed-up kits" is required.

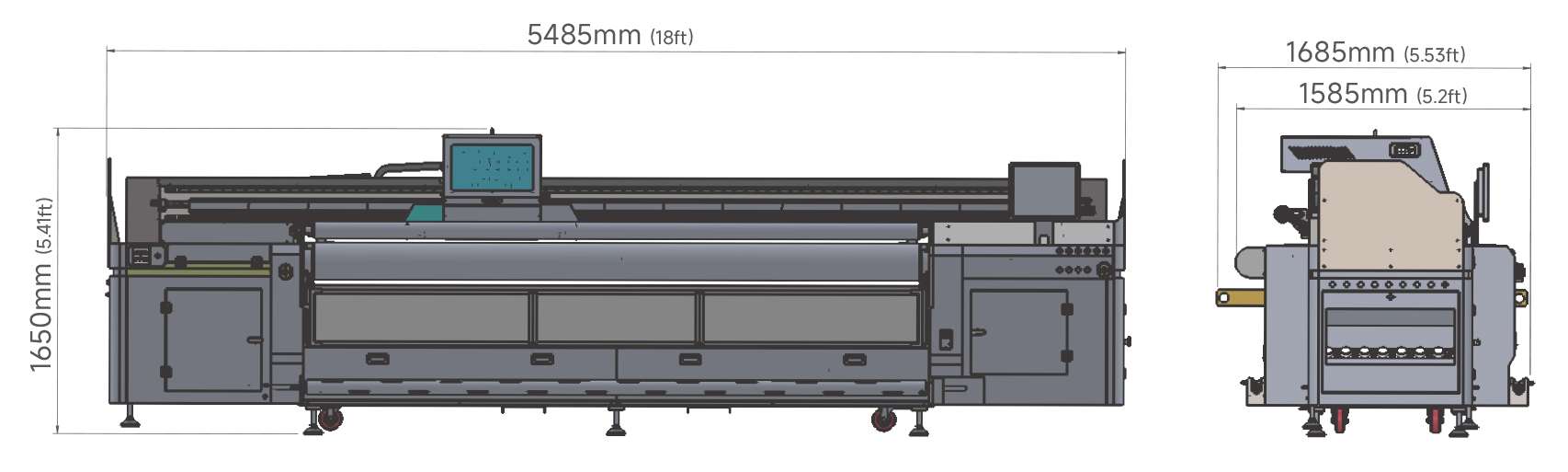

Dimension
Specification
| Model | Power Pro3200 |
| Printhead | Konica 1024a 7PL*24H Max. |
| Resolution | 479,1080,1440,2160dpi |
| Color | CMYK,White,Varnish, LcLm (Option) |
| Material thickness | 0~35mm(1.38 in) |
| Ink curing system | UV LED curing system |
| Vacuum suction | 4 zones |
| Maximum printing width | 3200mm (10.49ft) |
| Ink | UV curable ink |
| Optional |
Extension tables*2pcs |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 2.5L ink tank, automatic alarm for ink volum shortage |
| Ink supply system | Auto Negative ink supply |
| Media | Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、Flex Banner、Wallpaper、Car Sticker、Soft Film、PVC、PP、PE、PTFE…… |
| PC specification | Window7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| Media handling | Belt conveyor |
| Transmission system | X-axis high-precision magnetic motor |
| RIP software | PhotoPrint /PrintFactory/Caldera(option) |
| Operation environment | Temperature 18°C~ 26°C |
| Humidity 40% ~ 70% | |
| Power supply | Power Maximum:7.5KW; AC,50HZ/60HZ; 220v(±10%) > 15A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 5485 x 1685 x 1650mm (18 x 5.53 x 5.41ft) (without extension tables) |
| 5485 x 3360 x 1650mm (18 x 11.02 x 5.41ft) (with extension tables) | |
| Net weight & Gross weight |
5800 x 2216 x 1830mm (19.03 x 7.27 x 6ft) |
| Weight | 2200kg(4850lb) & 2700kg(5952lb) (without extension tables) |
| 2380kg(5247lb) & 3000kg(6614lb) (with extension tables) | |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
