Key benefits
1. High-precision & plate-free foiling
• ±0.2mm(0.007874in) in accuracy for plate-free foiling on varnish.
2. Dual effects with uniform suction
• Matte/glossy effects with one varnish, secured by uniform suction.
3. One key print
• ±0.2mm(0.007874in) in accuracy for plate-free foiling on varnish.
2. Dual effects with uniform suction
• Matte/glossy effects with one varnish, secured by uniform suction.
3. One key print
Application
Card
Postcard
Invitation
Personalized Calendar
Inner and Outer
Packaging Box
Ceramic
Book
Menu
Features

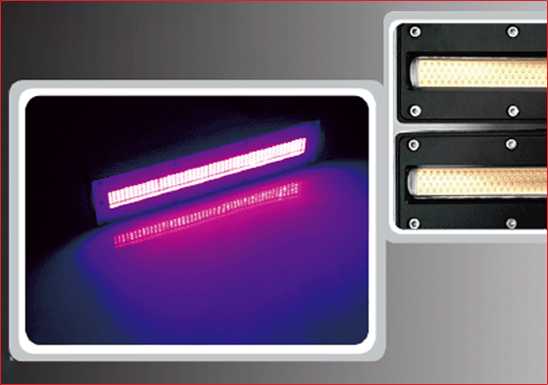

Water-cooled LED-UV curing
Ink temperature control system

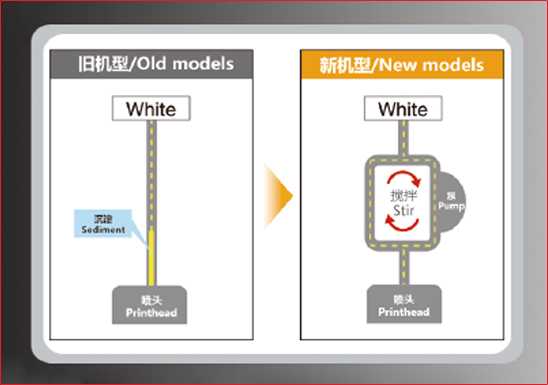

White Ink Stirring Function

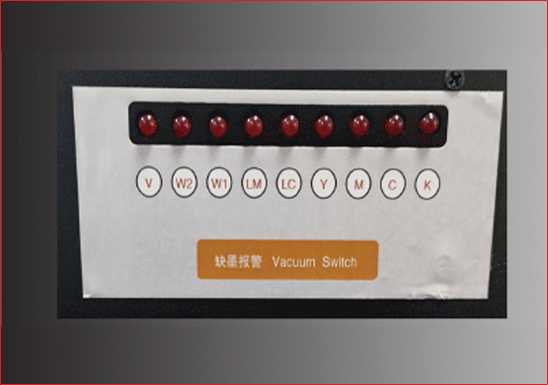

Liquid level alarm system

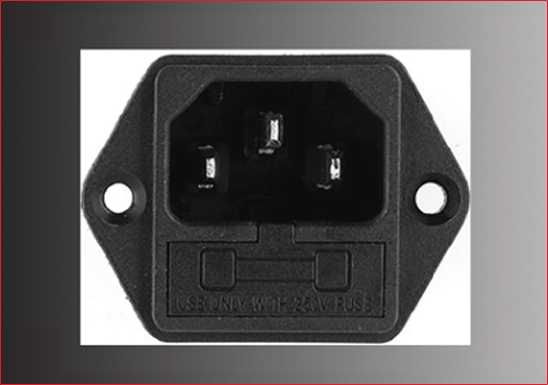

Low power design

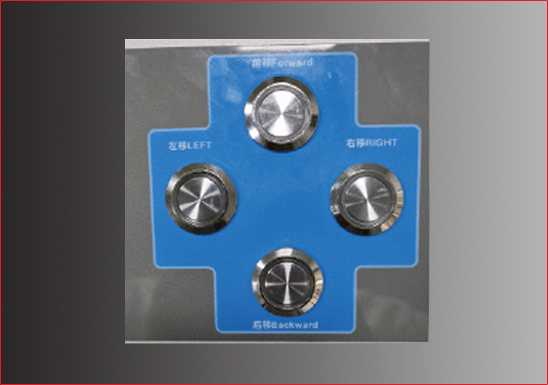

External motion system control

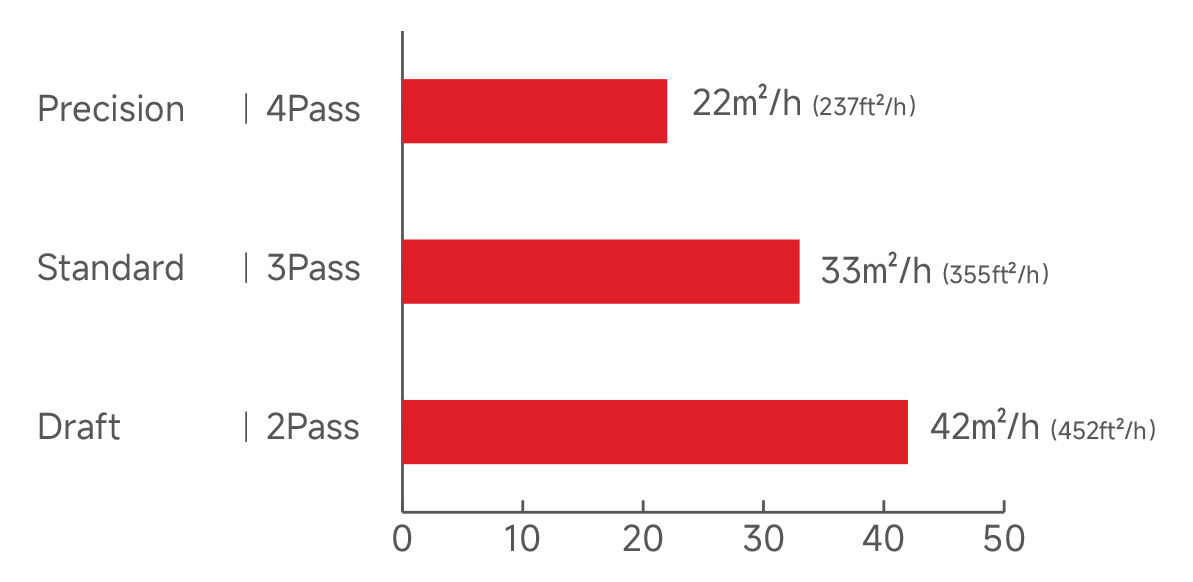

Print Speed

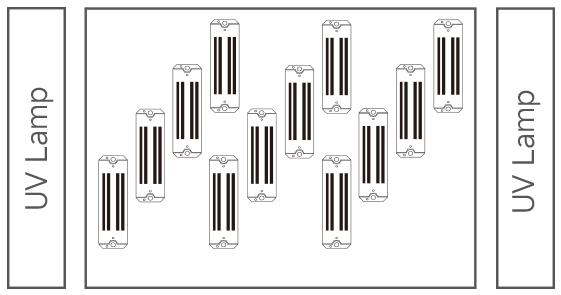

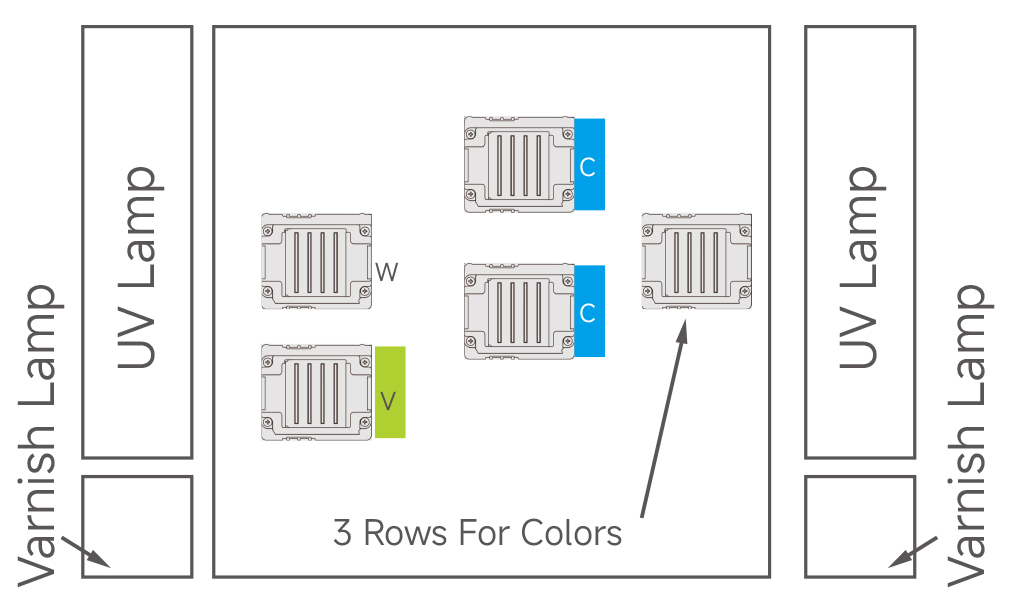

Printhead Soleplate
Printhead Soleplate
4H EPSON i3200 for CMYK+W+CMYK+Glossy V(Max.4head)
Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #28 | Varnish | 1L/bottle |
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
Visual positioning function
| Vision type | Gantry Scanning |
| Camera model | 900 |
| Resolution | 600dpi |
| Working height | 3mm(0.118in) |
| Scanning speed | 30mm/s(1.181in/s) |
| Positioning accuracy | Less than 0.2mm(0.00787in) |
| Effective scanning range | 500×900mm(19.69×35.43in） |
| Depth of field | 3mm(0.118in) |
| Interface type | Network port |
| Image format | Tiff |

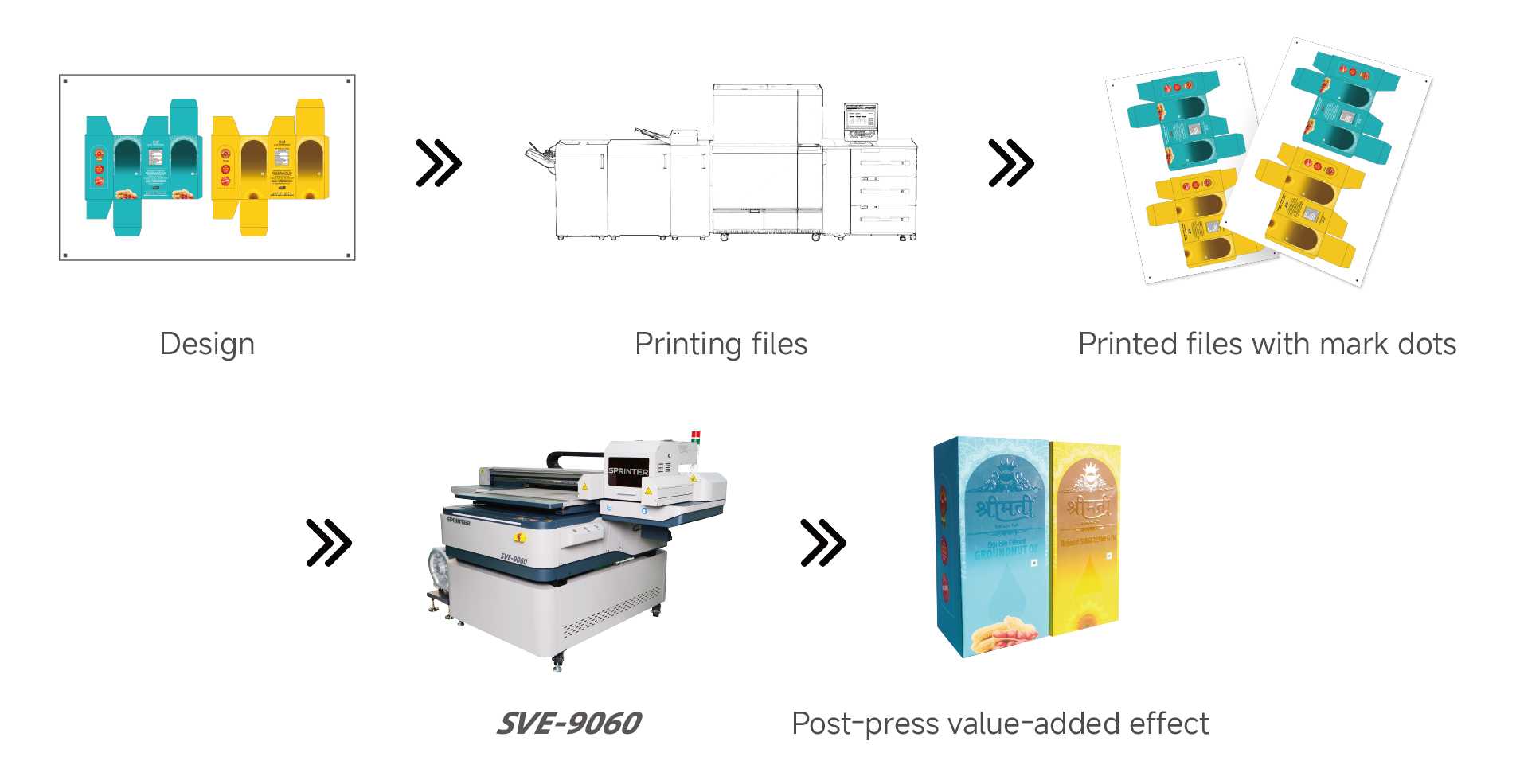

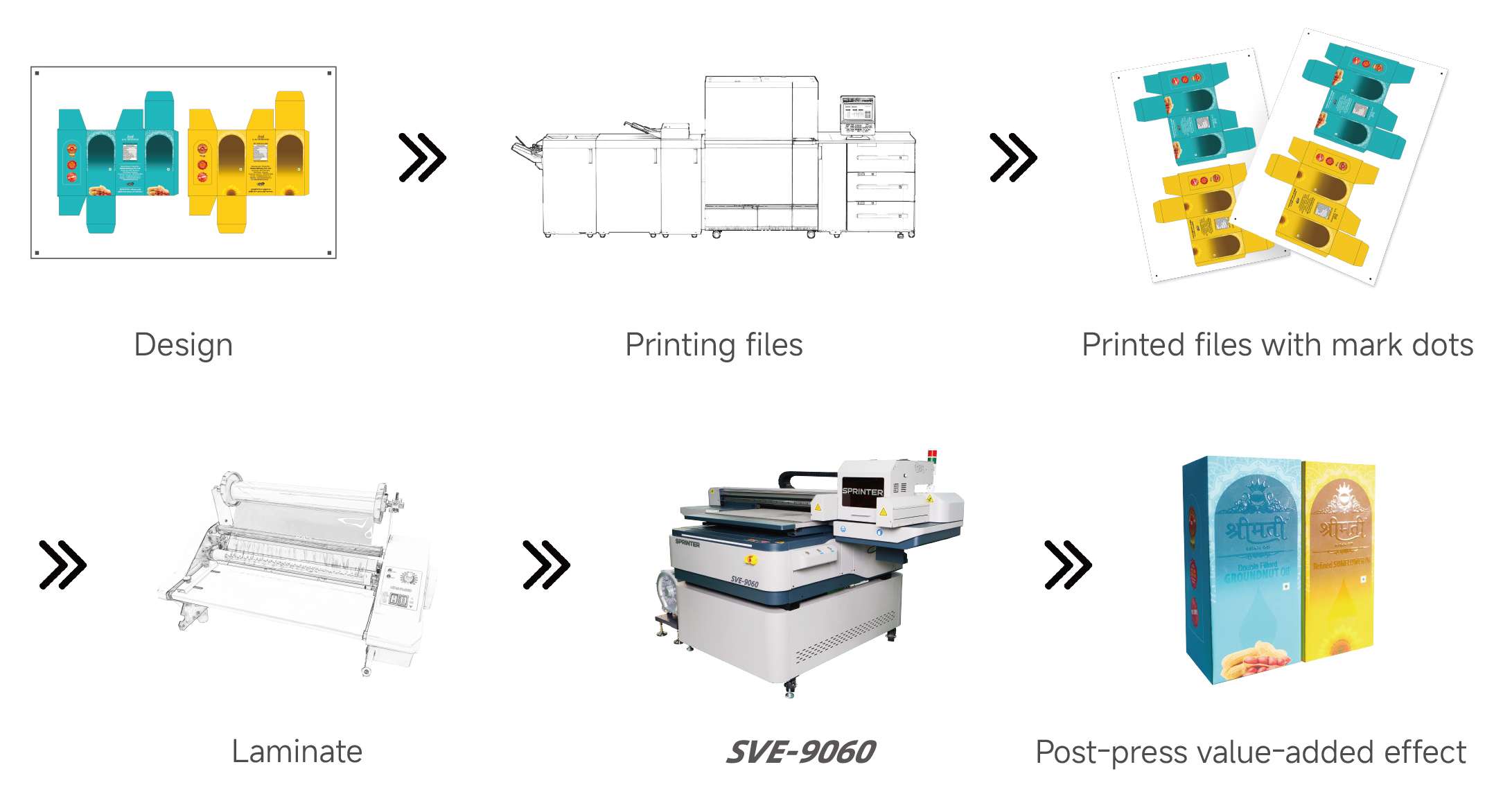

Efficiency-Enhanced Image Processing

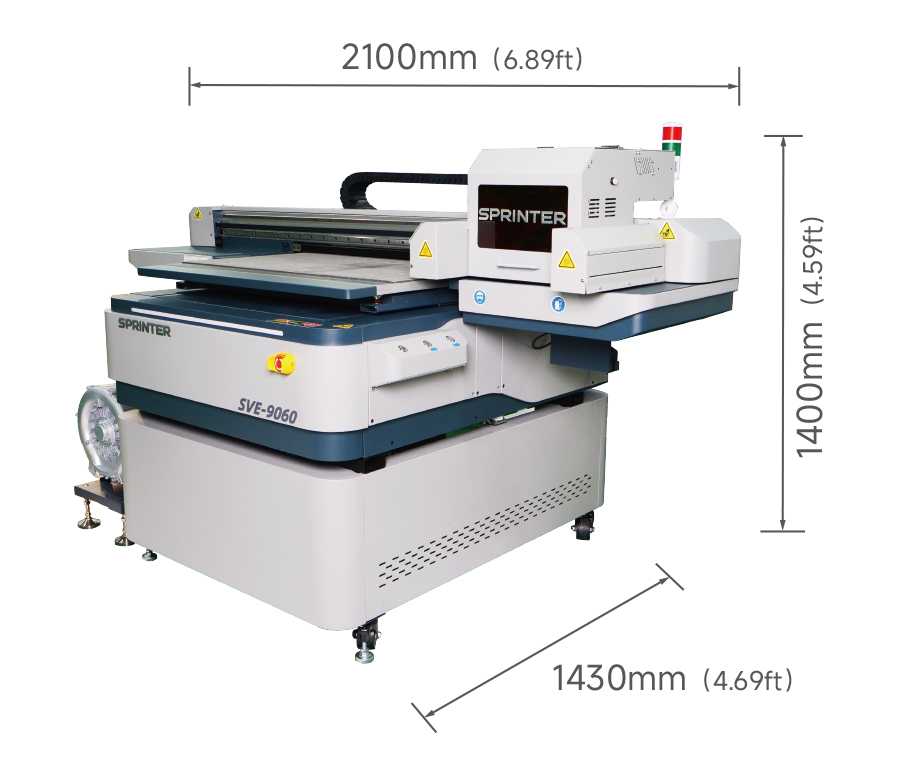

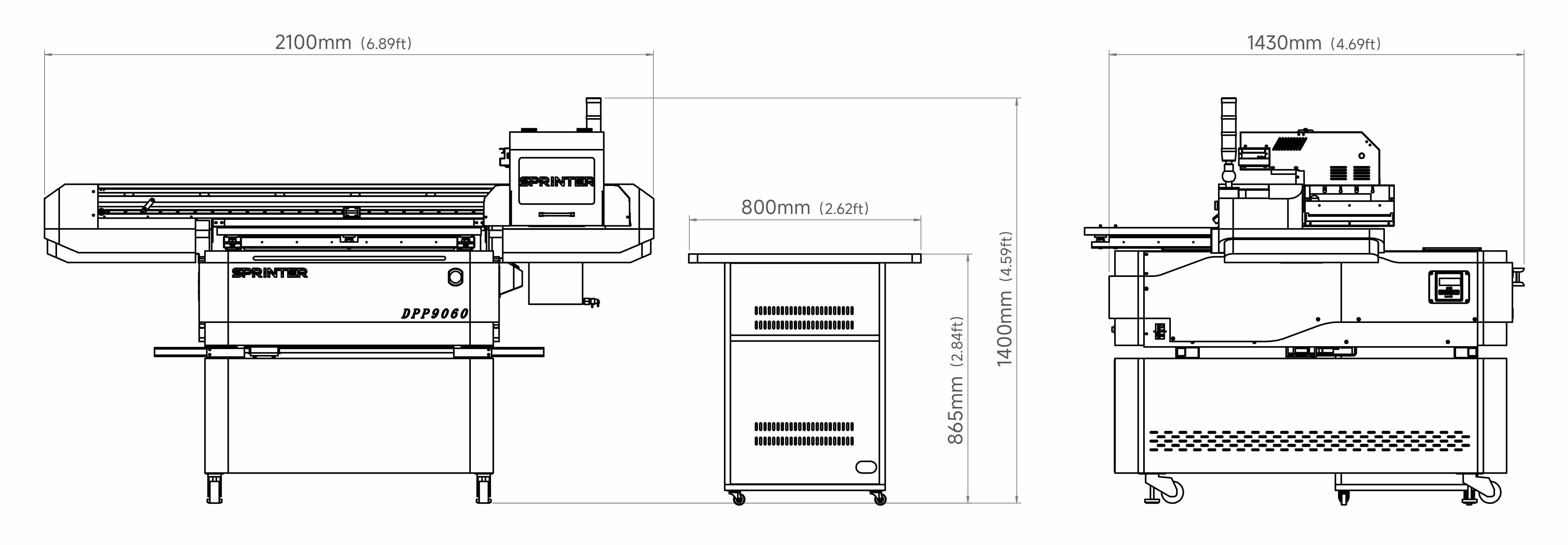

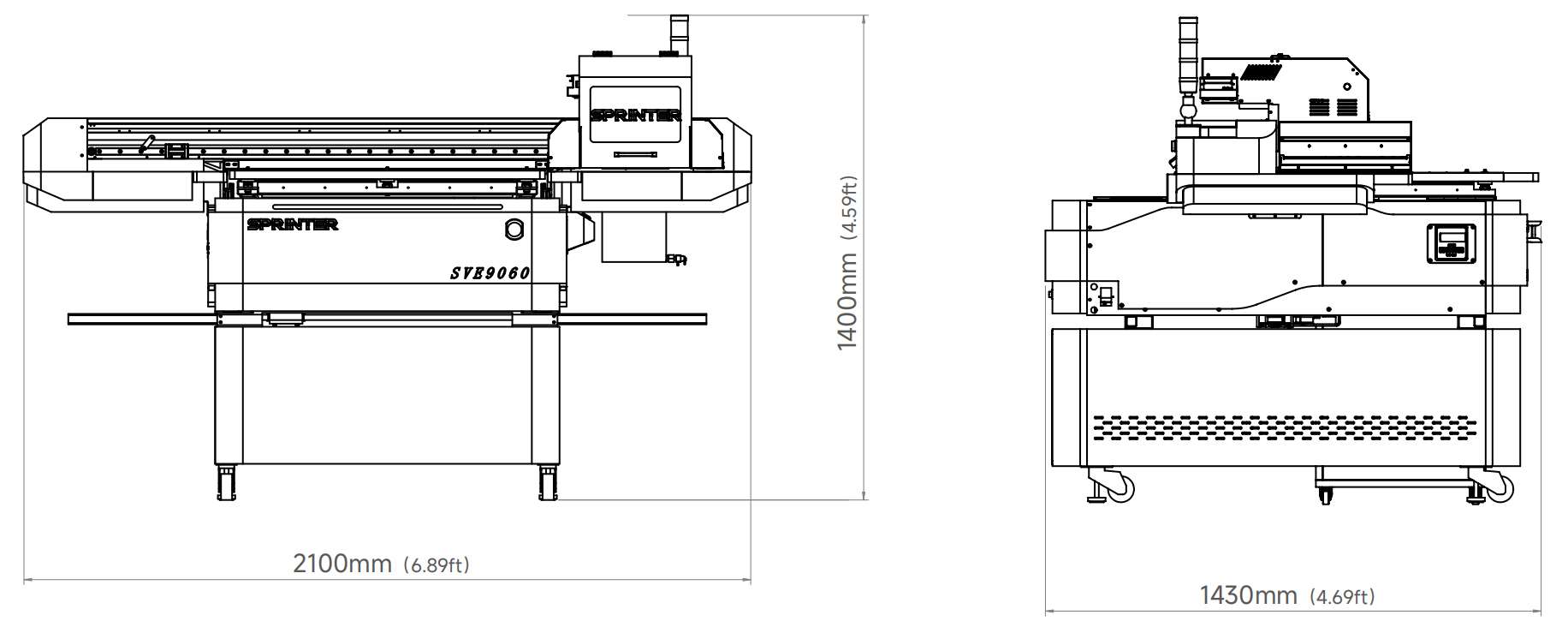

Dimension
Specification

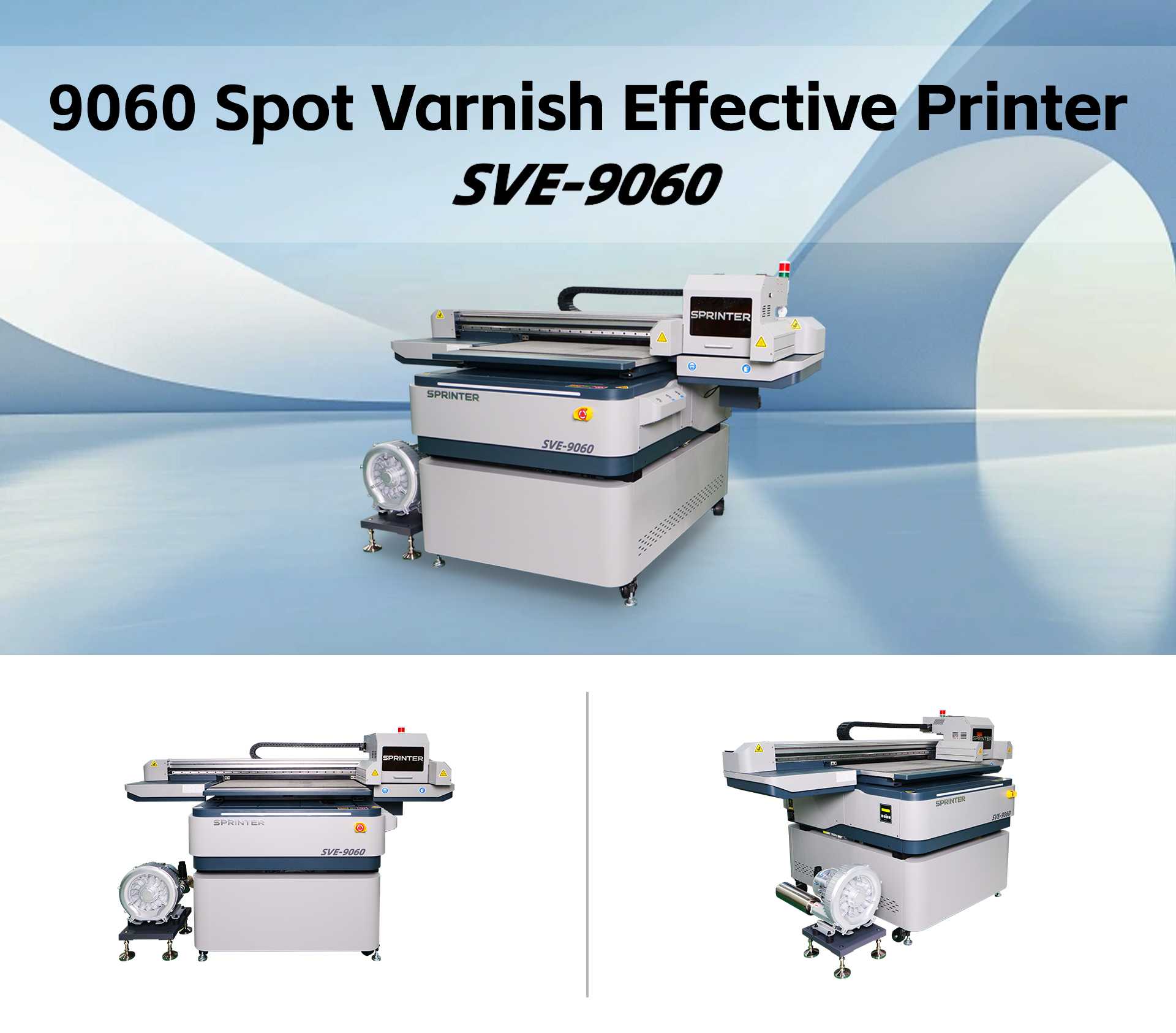

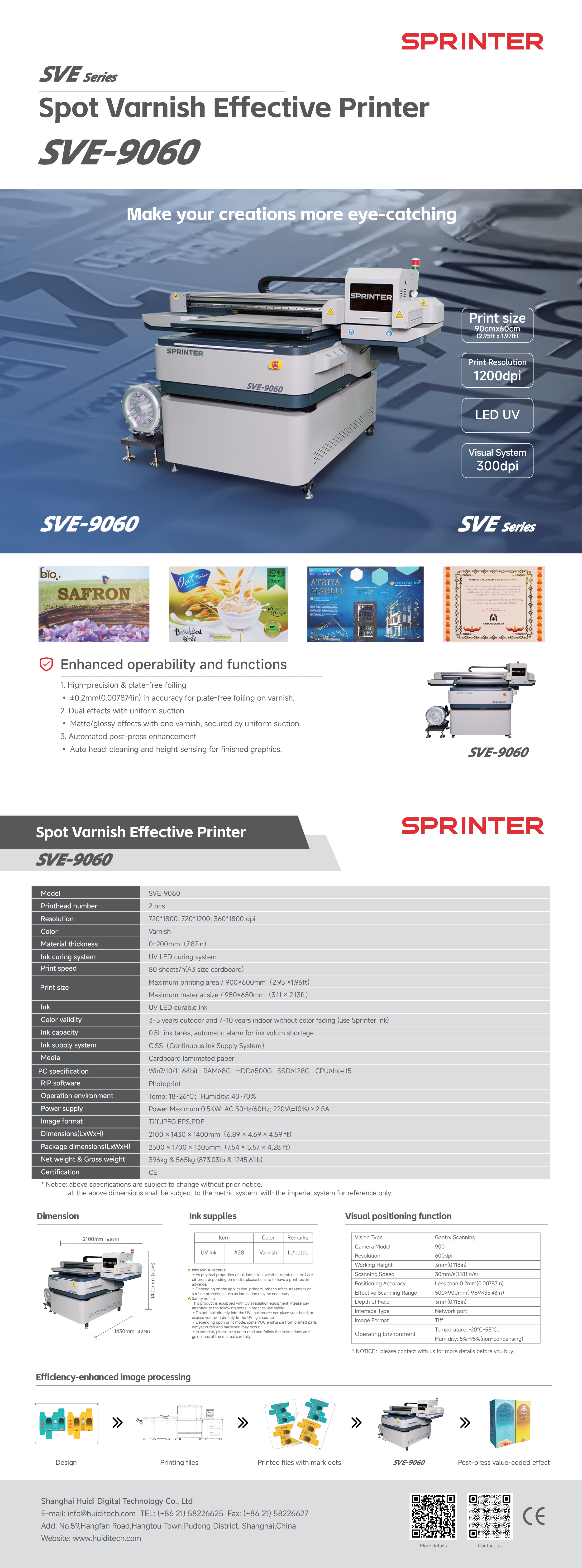

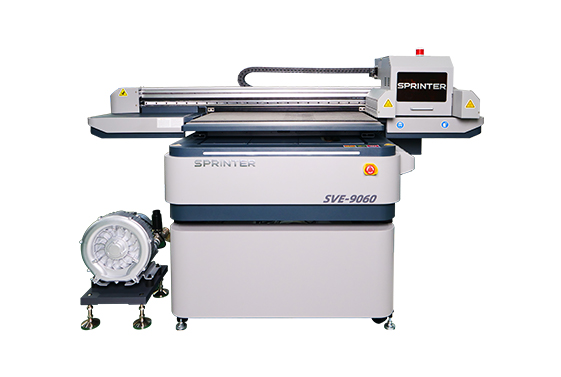

| Model | SVE-9060 | |
| Printhead number | 2 pcs | |
| Resolution | 1016*600 dpi | |
| Color | Varnish | |
| Material thickness | 0~2mm（0.0787in） | |
| Ink curing system | UV LED curing system | |
| Print speed | 120 sheets/h(A3 size cardboard) | |
| Print size | Maximum printing area / 900×500mm（2.95 × 1.64ft） | |
| Maximum material size / 900×600mm（2.95 × 1.97ft） | ||
| Ink | UV LED curable ink | |
| Color Validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | |
| Ink capacity | 1.5L ink tanks, automatic alarm for ink volum shortage | |
| Ink supply system | Auto negative ink supply | |
| Media | Cardboard lamimated paper | |
| PC specification | Win7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥2T . CPU≥Inte I5 | |
| RIP software | Built-in system software | |
| Operation environment | Temperature | 18℃~ 26℃ |
| Humidity | 40% ~ 70% | |
| Power supply | Power Maximum:3.55KW; AC 50Hz/60Hz; 220V(±10%)＞2.5A | |
| Image format | Tiff | |
| Dimensions(L x W x H) | 2100 × 1430 × 1400mm（6.89 × 4.69 × 4.59 ft） | |
| Package dimensions(L x W x H) | 2300 × 1700 × 1035mm（7.54 × 5.57 × 3.40 ft） | |
| Net weight&Gross weight) | 420kg & 620kg (925.94lb & 1366.86lb) | |
| Certification | CE | |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
