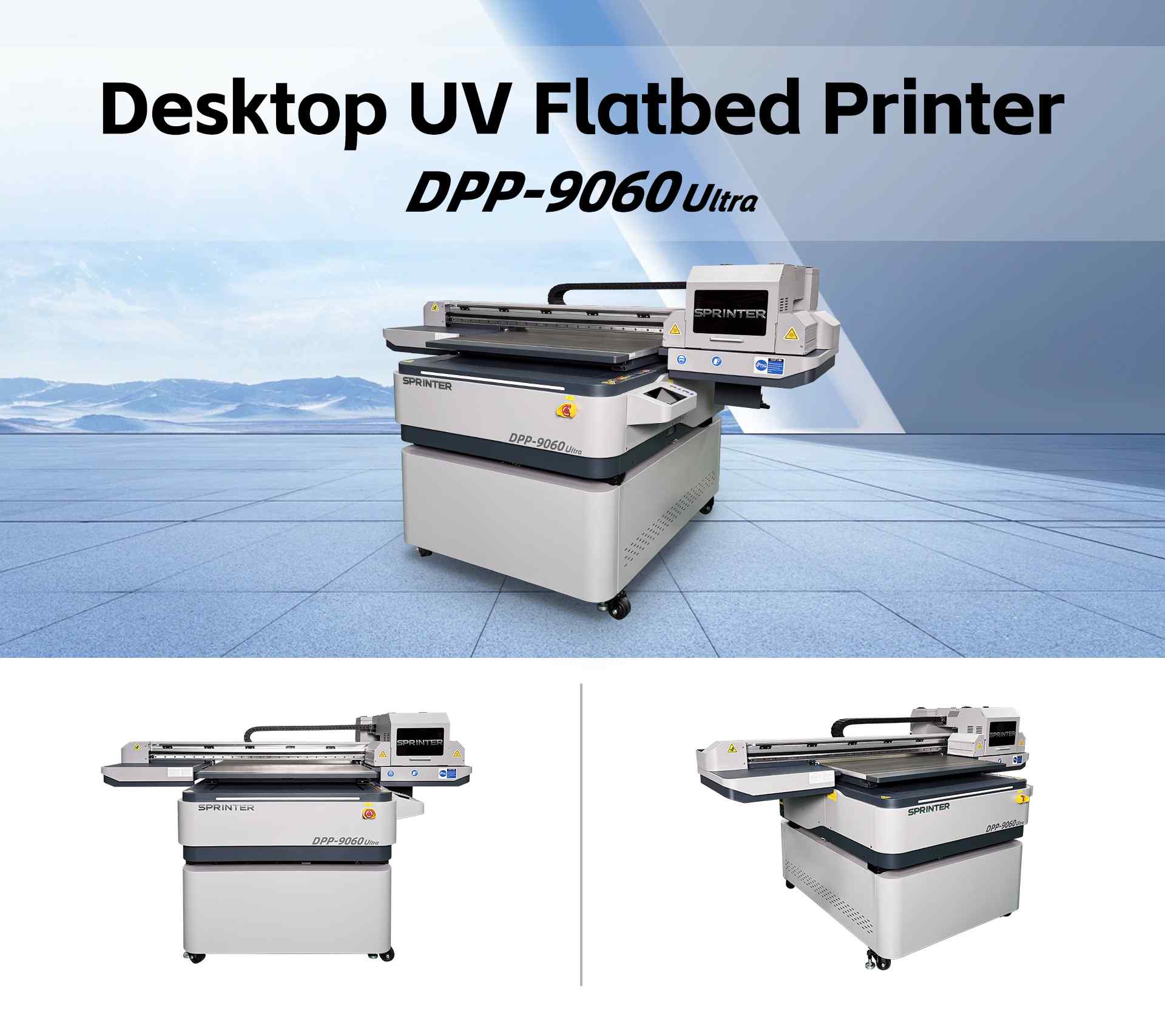

DPP 9060Ultra
Launch date:March 2025
297mm x 420m Desktop Mini UV Flatbed Printer
Powered by Epson i3200HD
DPP-A3 Ultra is a new compact 297mm x 420m Flatbed printer. It＇s smaller in size than the other models，in the range, which is ideal for print companies who have a limited amount of space. As you would expect, it is very robust and extremely well engineered.
Key benefits
The new material height-detective system
Optional for vision positioning system
New appearance design
Application
Embossed Effect
Bottle
Wood
Phonecase
Ceramic
Arts And Crafts
Glass
Badge
Card Holder
Customized Signs
Lipstick
Lighter
Features
Water-cooled LED-UV curing
Ink temperature control system
White Ink Stirring Function
Liquid level alarm system
Low power design
External motion system control

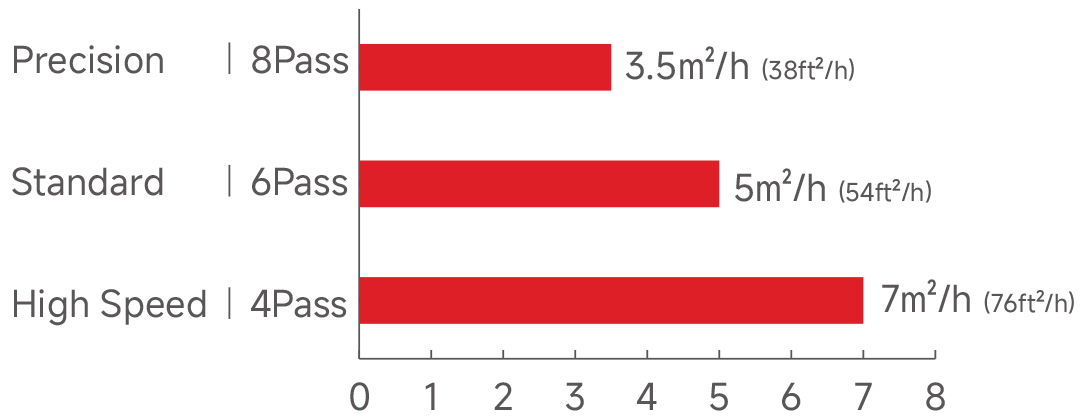

Print Speed
3 Head CMYK+W+V

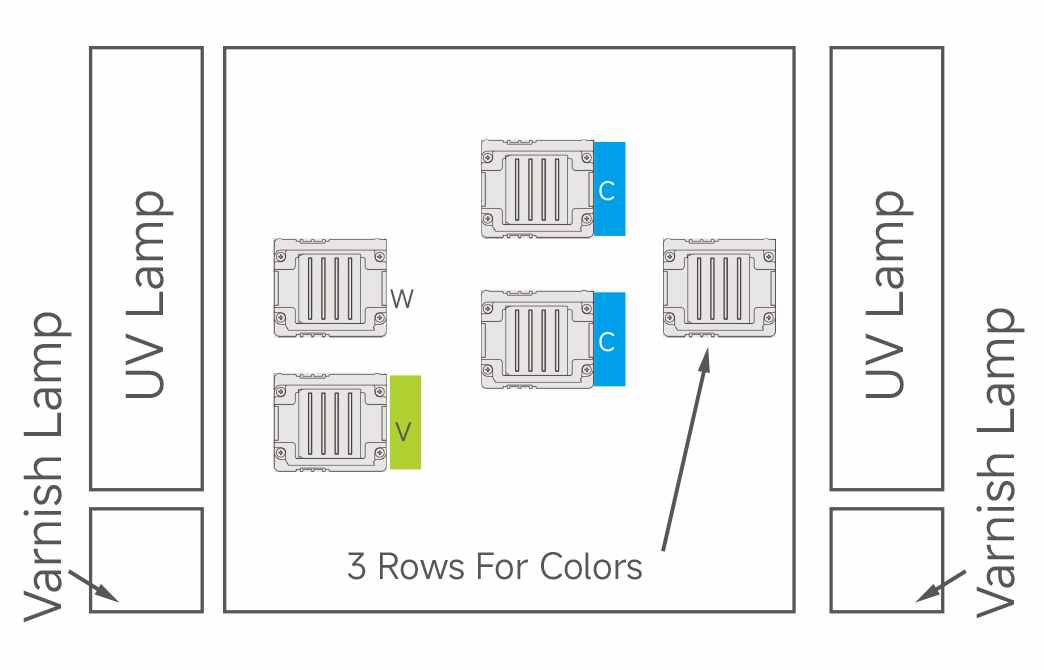

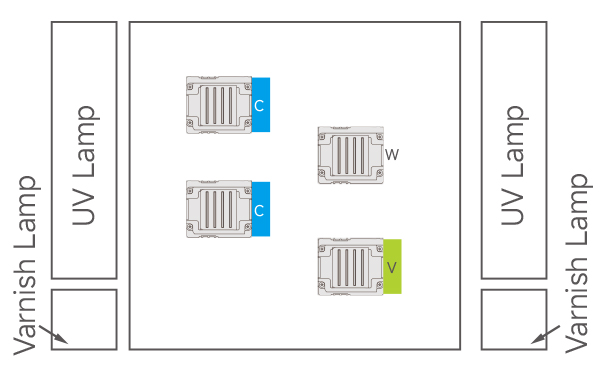

Printhead Soleplate
Maximum 4H EPSON i3200for CMYK+W+Glossy V
Ink Supplies
| Item | Color | Remarks | |
| UV Ink | #28 | cyan | 1L/bottle |
| magenta | |||
| yellow | |||
| black | |||
| varnish | |||
| white | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
Visual positioning function(DPP A1Ultra)
| Vision type | Gantry scanning |
| Camera model | 900 |
| Resolution | 600dpi |
| Working height | 3mm(0.118in) |
| Scanning speed | 30mm/s(1.181in/s) |
| Positioning accuracy | Less than 0.2mm(0.00787in) |
| Effective scanning range | 500×900mm(19.69×35.43in) |
| Depth of field | 3mm(0.118in) |
| Interface type | Network port |
| Image format | Tiff |
| Operating environment | Temperature: -20℃-55℃； Humidity: 5%-95%(non-condensing) |
* NOTICE:please contact with us for more details before you buy.

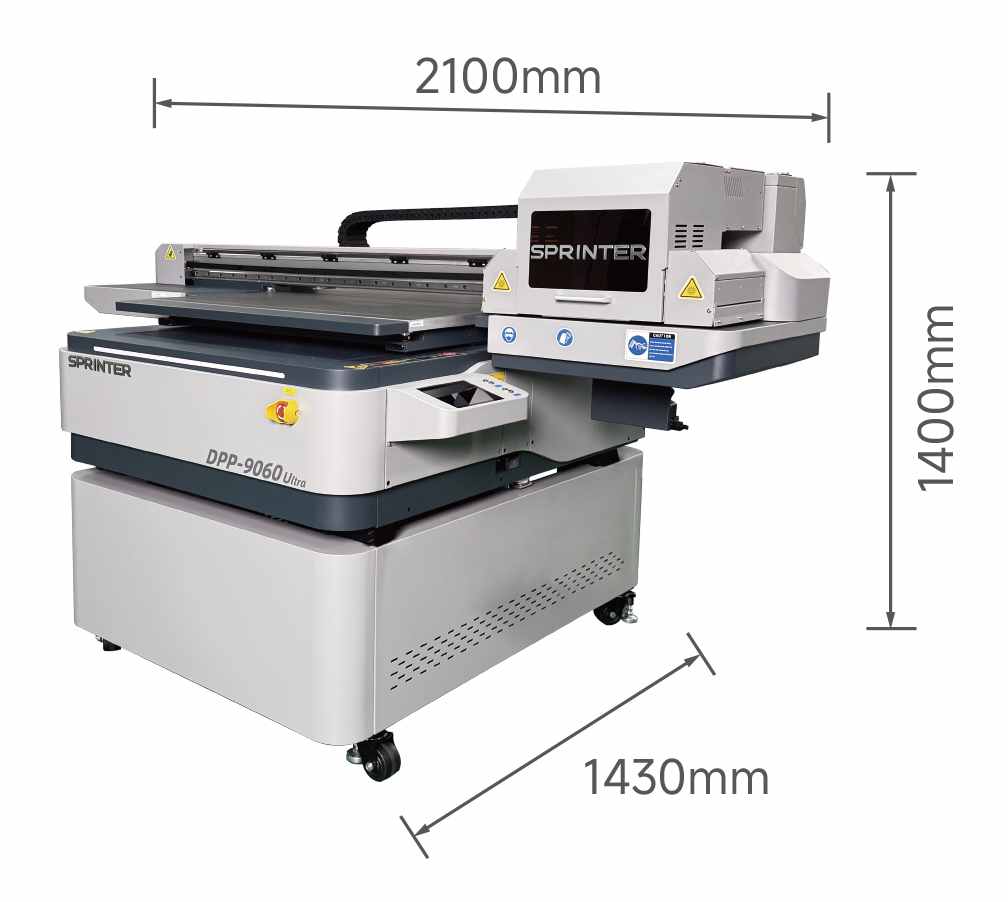

Dimension
Specification
| Model | DPP 9060Ultra |
| Printhead | EPSON i1600/i3200 |
| Resolution | 720*1800; 720*1200; 360*1800 dpi |
| Color | CMYK, White，Varnish |
| Material thickness | 0~200mm（7.87in） |
| Ink curing system | UV LED curing system |
| Vacuum suction | Turbo fan |
| Printing size | Maximum Printing Area / 900 x 600mm (2.95 x 1.96 ft） |
| Maximum Material Size / 950 x 650mm (3.11 x 2.13 ft) |
|
| Ink | UV curable ink |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 0.5L ink tanks, automatic alarm for ink volum shortage |
| Ink supply system | Siphon ink supply system |
| Media | Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、 PVC、PP、PE…… |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| RIP software | PhotoPrint mini |
| Operation environment | Temperature：18℃~ 26℃ |
| Humidity： 40~70% | |
| Power supply | Power Maximum:0.77KW; AC 50Hz/60Hz; 220V(±10%)＞2.5A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 2100 x 1430 x 1400mm（6.89 x 4.69 x 4.59 ft） |
|
Package dimensions (L x W x H) |
2300 x 1700 x 1305mm （7.54 x 5.57 x 4.28 ft） |
| Net weight&Gross weight | 396kg & 565kg (873.03lb & 1245.61lb) |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
