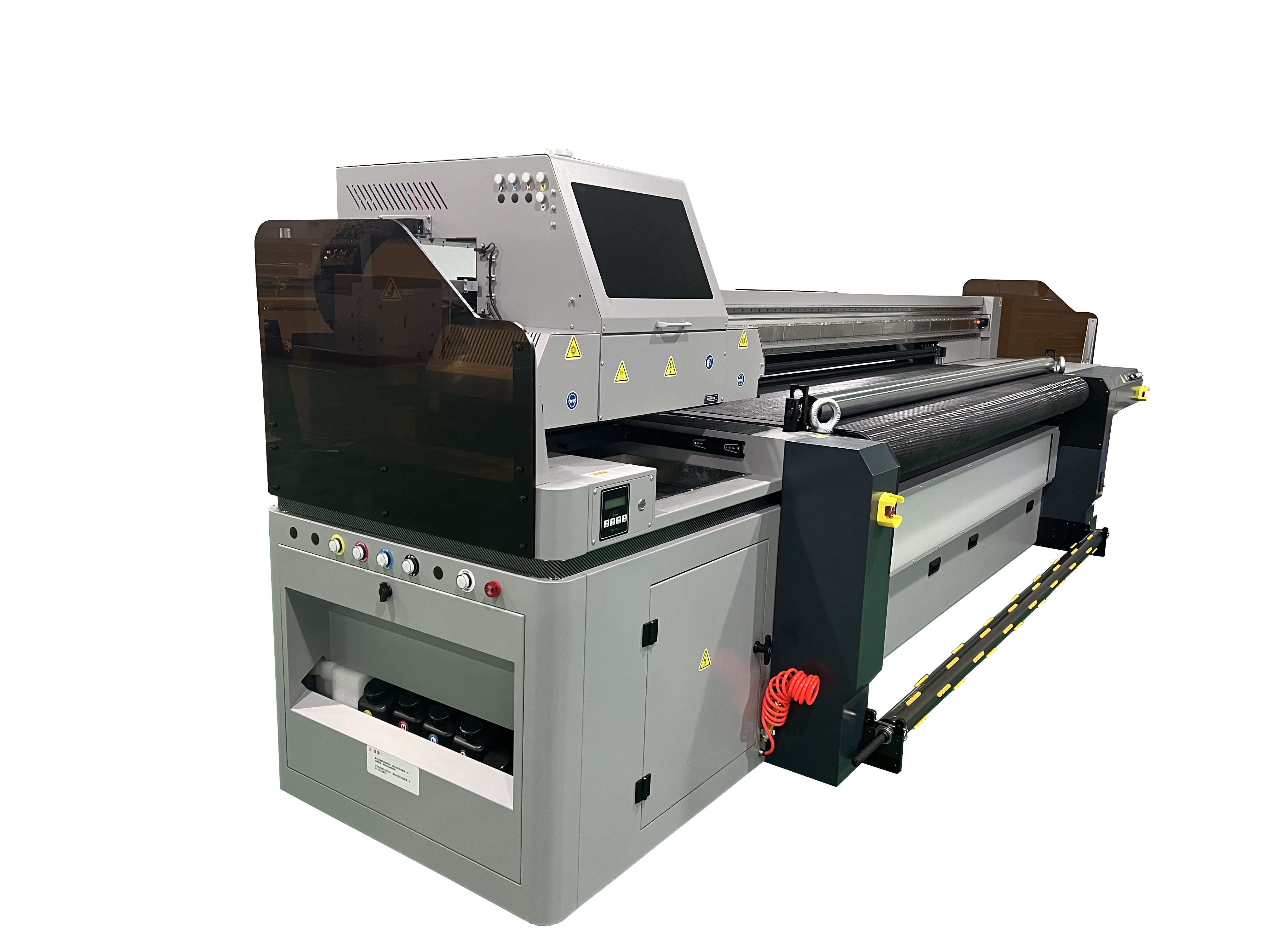

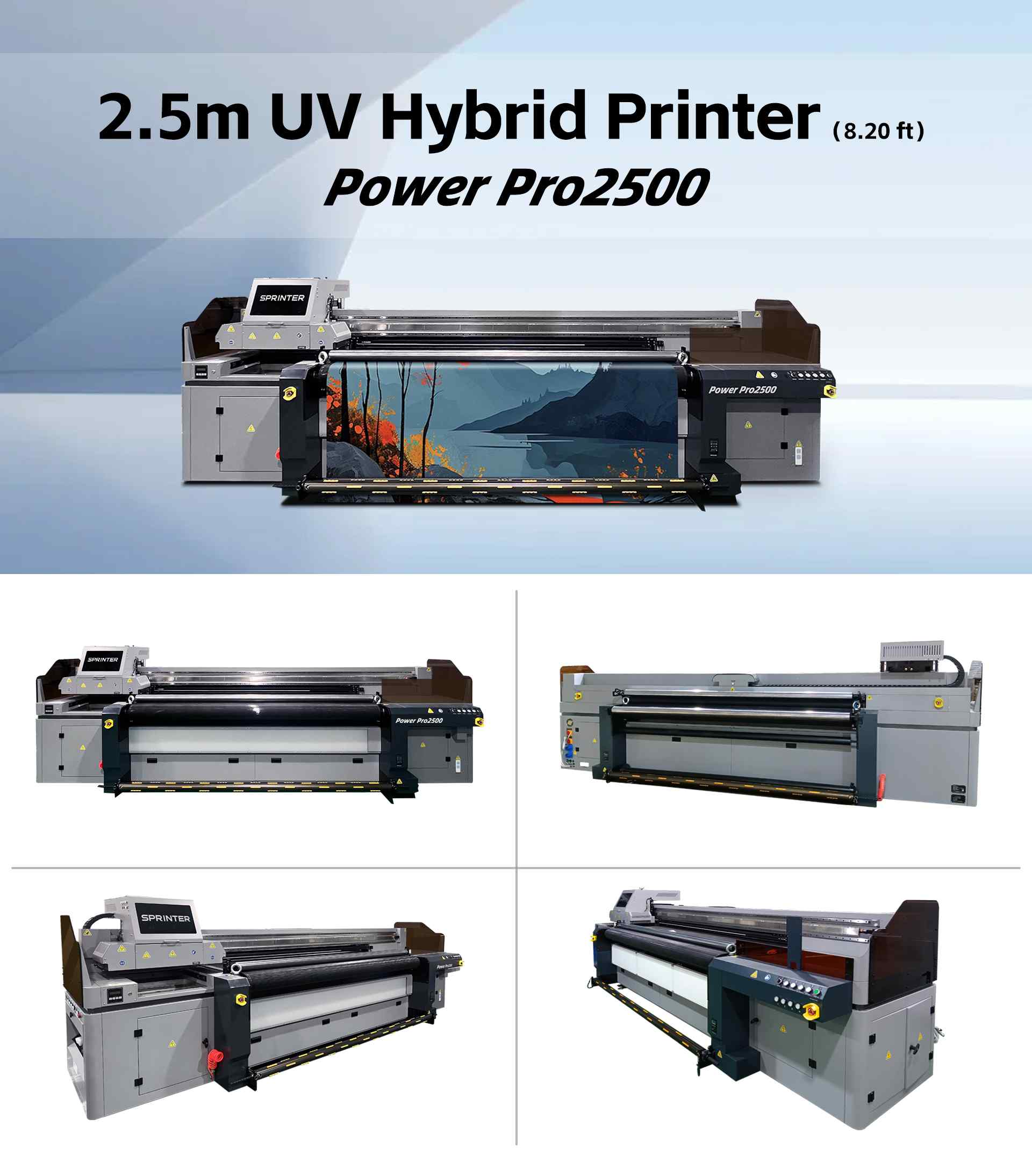

Power Pro 2500
2.5 Meters UV Belt-conveyed Hybrid Printer
Power Pro2500 is a heavy duty belt-conveyed UV hybrid printing machine, which is designed mainly for both roll to roll printing and board sheet printing. 2.5m width offers a solution of multiple smaller sized media to print at the same time.
Key benefits
New feeding up system with new balance system
Special belt conveyor
Flat material printing up to 25mm（0.9843 in）thick
Special belt conveyor
Flat material printing up to 25mm（0.9843 in）thick
Application
Kitchen Decor
Bar Decor
Interior Wall Decoration For Office Building
TV Feature Wall
Bathroom Decor
Interior Decoration
Exterior Wall Decoration
Wallcovering
Features

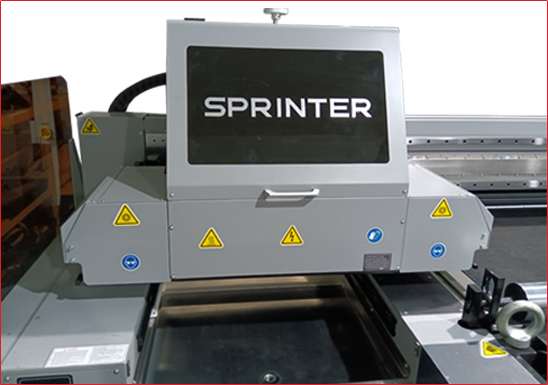

UV-LED Curing System
LED curing doesn't produce much heat. So heat-sensitive media can be printed and cured without material damage. The curing power is adjustable.Besides, UV-LED curing system also has a longer lifetime. And it is maintenance free and eco-friendly.
Magnetic Technology
Comparing to traditional servo motor+belt system, magnetic reduces transmission parts, cut down failures, and decrease maintenance rate. In particular, it provides higher speed for printhead moving, which increased productivity in a great scale.
Statics Elimination
Statics exists on material, especial in a dry environment. With statics elimination system, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.

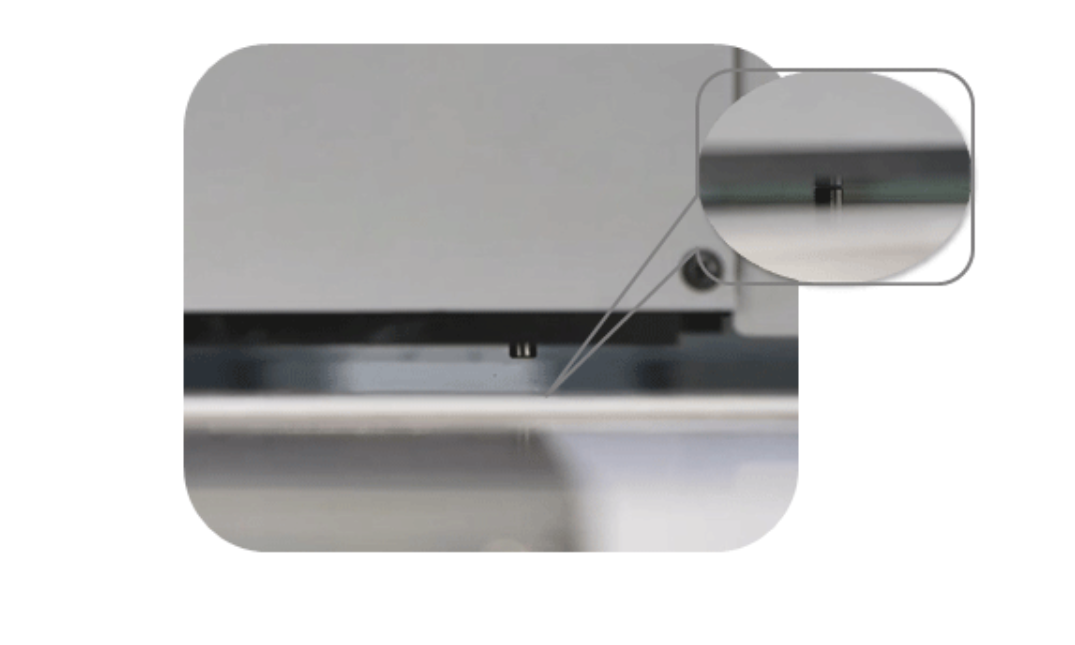

Auto Media Height Detection
It can measure the height of media and adapt to the height for print automatically. It can print media with thickness up to 110mm.
Anti-crush Protection
The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.

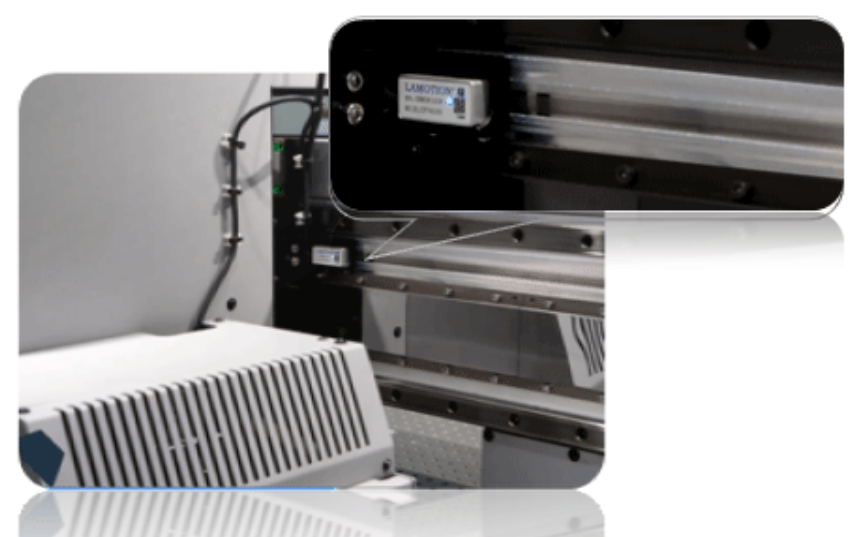

High-resolution encoder
The encoder on machine is metal encoder with resolution up to 1um. lt can ensure printheads moving exactly where it directed. Make sure each ink-dot drop down the right position.

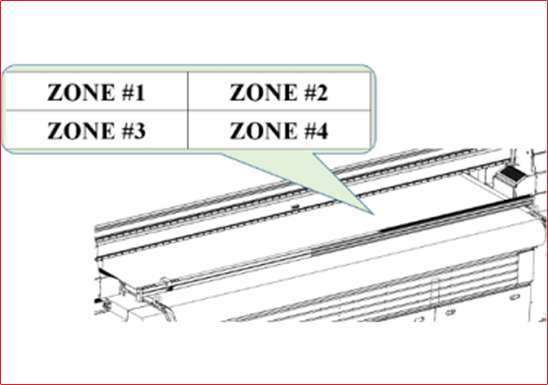

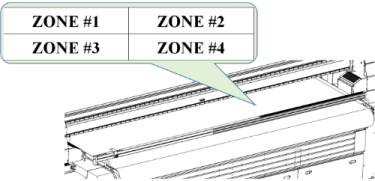

Flatbed Vacuum System
Belt table has vacuum system with 4 zones separately controlled. Strong vacuum power to make media stick on flatbed belt.

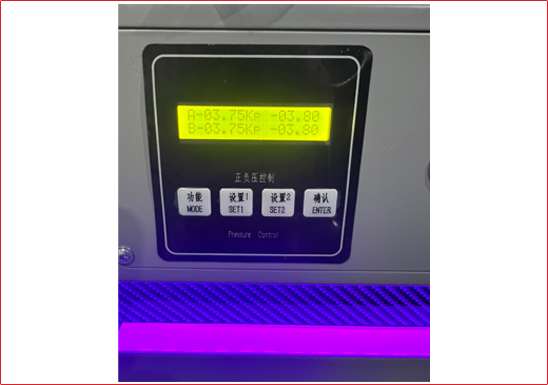

Negative Pressure control System

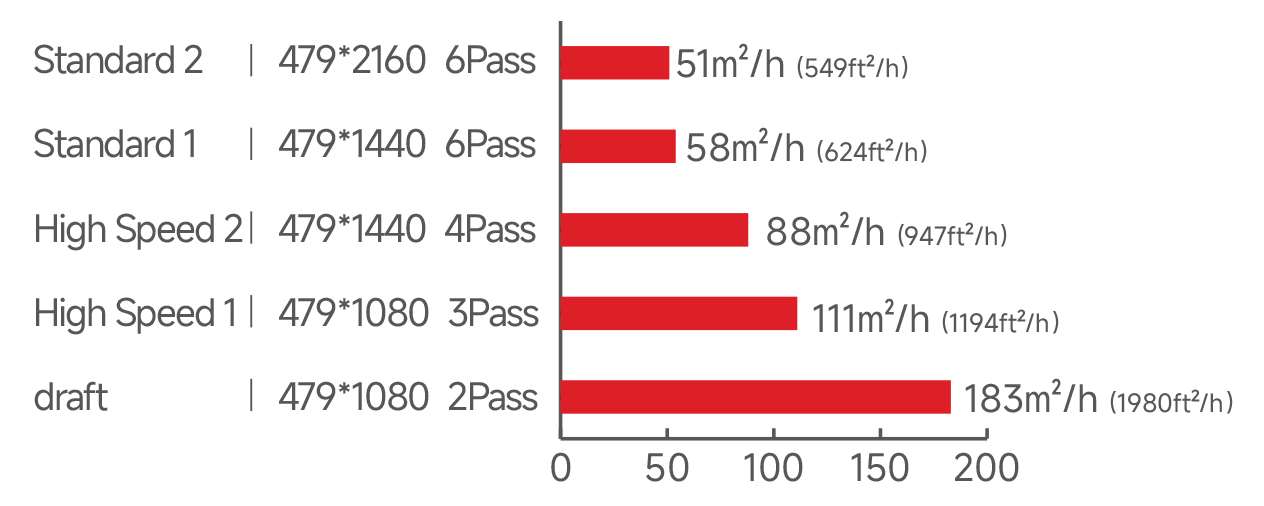

Print Speed
4 rows CMYK

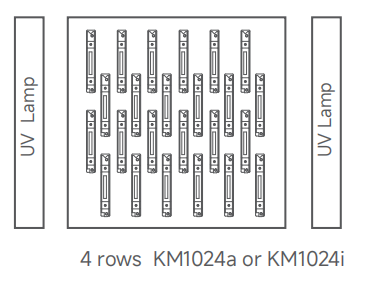

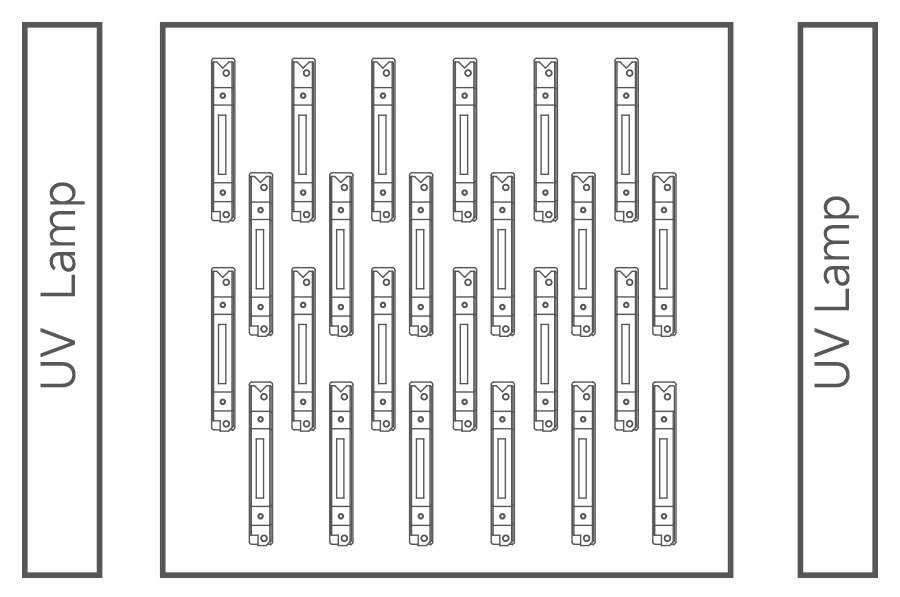

Printhead Soleplate
4 rows KM1024a or KM1024i(option:Ricoh G5/G6)

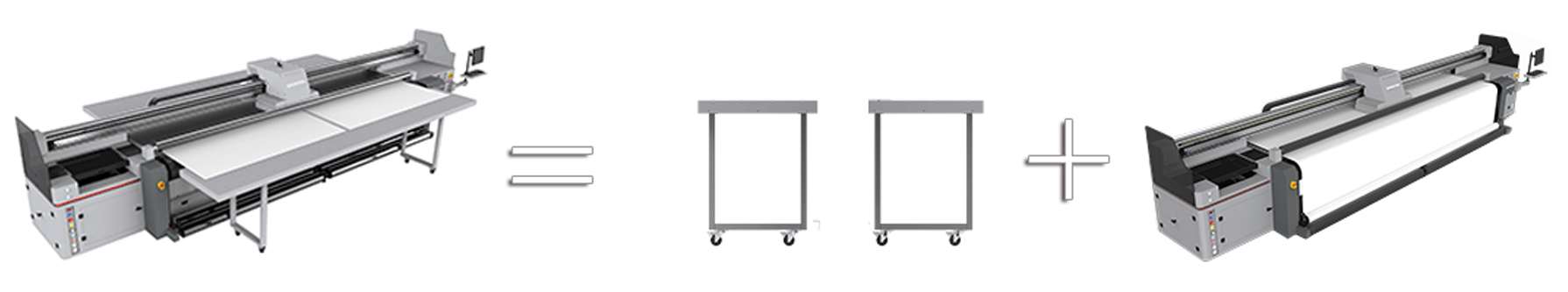

Printing board(Option)
Ink Supplies
| Item | Color | Remarks | |
| UV Ink |
#6S4 |
cyan | 1L/bottle |
| magenta | |||
| yellow | |||
| black | |||
| white | |||
Inks and substrates:
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.
•As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
•Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.
Safety notice:
This product is equipped with UV irradiation equipment. Please pay attention to the following notes in order to use safely.
•Do not look directly into the UV light source nor place your hand, or expose your skin directly to the UV light source.
•Depending upon print mode, some VOC emittance from printed parts not yet cured and hardened may occur.
•In addition, please be sure to read and follow the instructions and guidelines of the manual carefully.

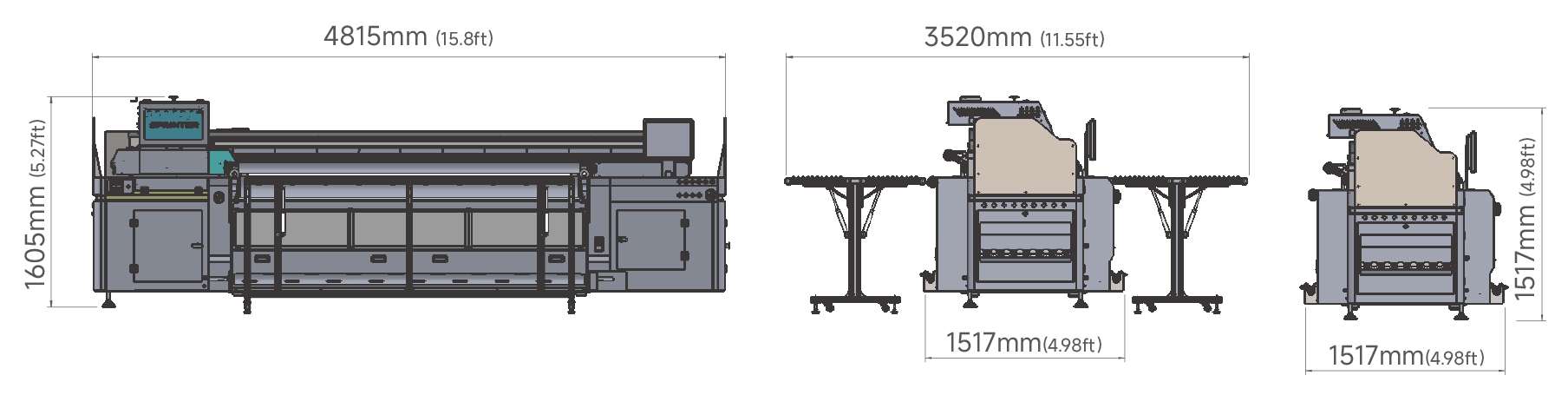

Dimension
Specification
| Model | Power Pro2500 |
| Printhead | Konica1024a 4rows / Konica1024i 4rows |
| Resolution | 479，1080，1440，2160dpi / 363, 1080, 1440, 2160dpi |
| Color | CMYK, White/Varnish, LcLm (Option) |
| Material thickness | 0~25mm (0.984in) |
| Ink curing system | UV LED curing system |
| Vacuum suction | 4 zones |
| Maximum printing width | 2500mm (8.2ft) |
| Ink | UV Curable ink |
| Optional |
Extension tables*2pcs |
| Color validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) |
| Ink capacity | 2.5L ink tank, automatic alarm for ink volum shortage |
| Ink supply system | Auto Negative ink supply |
| Media | Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、Flex Banner、Wallpaper、Car Sticker、Soft Film、PVC、PP、PE、PTFE…… |
| PC specification | Win 7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 |
| Media handling | Belt conveyor |
| Transmission system | X-axis high-precision magnetic motor |
| RIP software | PhotoPrint /PrintFactory/Caldera(option) |
| Operation environment | Temperature / 18℃~ 26℃ |
| Humidity / 40% ~ 70% | |
| Power supply | Power maximum:7.2KW; AC,50HZ/60HZ; 220v(±10%)＞15A |
| Image format | Tiff,JPEG,EPS,PDF |
| Dimensions(L x W x H) | 4815 x 1517 x 1605 mm(15.8 x 4.98 x 5.27 ft) (without extension tables) |
| 4815 x 3520 x 1605 mm(15.8 x 11.55 x 5.27 ft) (with extension tables) | |
| Package dimensions(L x W x H) |
5130 x 2216 x 1830mm(16.83 x 7.27 x 6 ft) |
| Net weight & Gross weight | 2000kg(4409lb) & 2500kg(5512lb) |
| Certification | CE |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
