Power Pro 2200
2.2 Meters UV Belt-Conveyed Hybrid printer
POWER PRO 2200 is a hybrid UV printer that can work both for roll and flat materials with external tables. It could print on material with width upto 2.2m. It has been widely used in signs & advertising. display, furniture, decorating industries.
Key benefits
- Print both on roll and flat materials
- Perfect performance for stretchable material
- Impressive productivity in high speed working
- Vivid image output with white and varnish color options
- Energy-saving LED ink-curing system
- Fast drying UV ink
Advantage
- SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
- SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.
Machine Systems
- User-friendly control system
- Image ripping system
- Auto media height detection
- Anti-crush system
- Statics eliminating system
- Media suction platform
- Auto ink volum alarm system
- Backlit display during printing
Playful
It loves creative expression. Thanks to cool LED curing, that can even involve delicate materials. Depending on the idea and requirements, various printing modes are available – visual and tactile 3D effects included. Yet for all its playfulness, it always works reliably and with utmost precision.

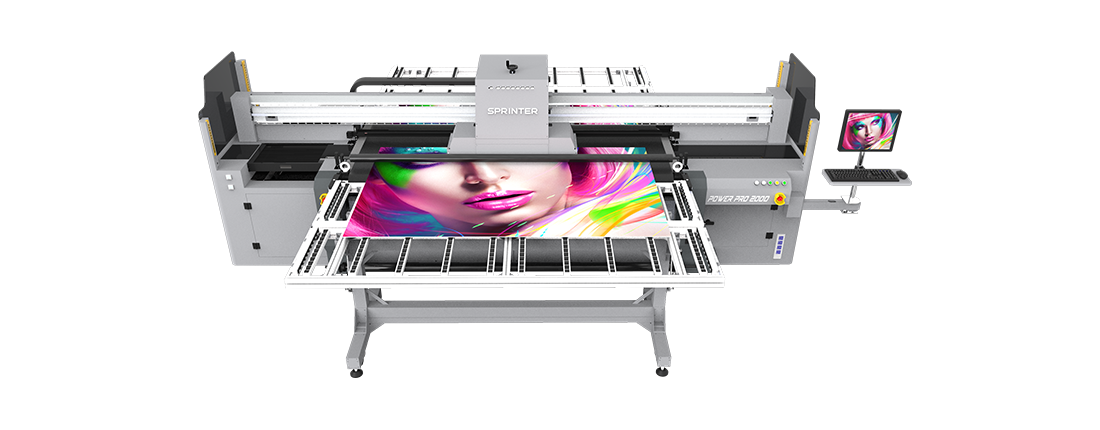

Sprinter Power Pro2200 UV hybrid printer
Sprinter Power Pro2200 color+white+color print
Option
Printing board
Flawless end-to-end printing on rigid media up to 4 metres long is a standard routine with the printing board option.
Equipment
With the world's top partners, to create the most outstanding quality
Rich printing solutions, Makes you RICH
Product dimension diagram
Features
UV-LED Curing System
Auto media height detection
Anti-crush Protection
Statics Elimination
Flatbed Vacuum System
High-resolution encoder（Option）
Applications
Embossed effects
Shiny Photos
Double-side seeing
Print 3D Image
Technical Specs
| Model | Power Pro 2000 | Power Pro 2000 | Power Pro 2000 | Power Pro 2000 |
| Printhead | RICOH GEN5 7PL *12H Max | RICOH GEN6 5PL *12H Max | Konica 1024i 14PL *12H Max | Konica 1024i 6PL *12H Max |
| Resolution | 600; 900; 1200; 1800; 2400 | 720; 1080; 1440 | ||
| Printing speed | 85 ㎡/h | 110 ㎡/h | 110 ㎡/h | |
| Color | CMYK,White,Varnish, LcLm options | |||
| Max.material thickness | 0~25mm | |||
| Ink drying system | LED curing system | |||
| Vacuum system | with vacuum belt platform. | |||
| Printing width | 2200mm | |||
| Ink | UV Curable ink | |||
| Optional tables | work tables *2pcs | |||
| Color Validity命 | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | |||
| Ink capacity | 2.5L drums, automatic alarm for ink volum shortage | |||
| Ink supply system | Auto Negative ink supply | |||
| Materials | Glass、PMMA、ceramic、Metal、Paper、wood、Leather、flex banner、Wallpaper、Car sticker、Soft film、PVC、PP、PE、PTFE…… | |||
| Control system | Window7/10 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5 | |||
| RIP software | Photoprint / ONYX / Caldera（可选） | |||
| Operation environment | Temperature | 18℃~ 26℃ | ||
| Humidity | 40% ~ 70% | |||
| Power supply | Power Maximum: 5KW; AC,50HZ/60HZ; 220v(±10%)＞15A | |||
| Image format | Tiff,JPEG,EPS,PDF | |||
| Package dimensions (L x W x H) | 4780 x 1960 x 1850 mm | |||
| Net weight & Gross weight | 1300kg & 1800kg | |||
| Certification | CE | |||
*Specifications subject may change without notice. Please confirm with sales representative for more details.
