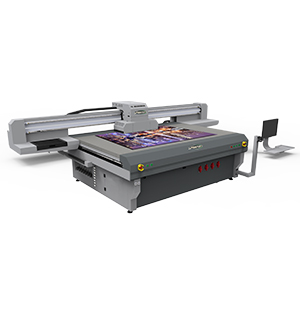

TrueColor TC-FR2713

2.70*1.30 Meter UV Flatbed RMO Printer

Sprinter TC-FR2713 has 2.7*1.3m sized flatbed and 2.5m roll structure, which provides a unique solution for both rigid board and roll media printings. With the 2 in 1 function, this one machine could finish different printing orders for user.


Key benefits

  • Available to print for both board and roll material.
  • Heavy duty machine, capable to run 24/7.
  • Impressive productivity.
  • Vivid image output with white and varnish color options.
  • Eco and energy-save LED ink-curing system.
  • Fast drying UV ink.

Advantages

  • SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
  • SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.

Machine systems

  • User-friendly control system
  • Image ripping system
  • Auto media height detection
  • Anti-crush system
  • Statics eliminating system
  • Media vacuum suction system
  • Board media registration system
  • Auto ink volum alarm system
Watch video

Get to know it

Equipment

With the world's top partners, to create the most outstanding quality

With the world's top partners, to create the most outstanding quality

Rich printing solutions, Makes you RICH


Product dimension diagram


one unit for one 20 feet container (2 wooden boxes)


Features

UV-LED Curing System


Auto media height detection


Anti-crush Protection


Ink valve


Media Locating Pins


Statics Elimination


Flatbed Vacuum System


High-resolution encoder


Applications

Embossed effects


Shiny Photos


Double-side seeing


Print 3D Image


Technical Specs

Model TrueColor  TC-FR2713
Printhead RICOH GEN5 7PL *8 pcs Max RICOH GEN6 5PL *8 pcs Max
Resolution 600, 900, 1200, 1800, 2400 dpi
Printing speed 60㎡/hr CMYK x 3 Row 80㎡/hr CMYK x 3 Rows
Color CMYK,White,Varnish, LcLm options
Material thickness  Rigid material:≤ 110 mm;Flexible media:≤ 1 mm
Ink drying system LED lamp/UV mercury lamp
Vacuum system with 4 different vacuume zones in flatbed
Printing size Maximum Printing Area Rigid material:2700*1300mm depth
Flexible media width:2500mm
Maximum Material Size Rigid material:2750*1400mm depth
Flexible media width:2530mm
Ink UV Curable ink
Color Validity 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink)
Ink capacity 1.5L drums, automatic alarm for ink volum shortage
Ink supply system Auto Negative ink supply
Media Glass、PMMA、ceramic、Metal、Paper、wood、Leather、flex banner、Wallpaper、Car sticker、Soft film、PVC、PP、PE、PTFE……
Control system  Window7/10  64bit  . RAM≥8G  . HDD≥500G  . SSD≥128G  . CPU≥Inte I5
RIP software  Photoprint / ONYX / Caldera(可选)
Operation environment Temp: 18~26℃;Humidity: 40~70%
Power supply Power Maximum:7KW; AC,50HZ/60HZ; 220v(±10%)>15A
Image format  Tiff,JPEG,EPS,PDF
Dimension(L x W x H)  4740 x 2420 x 1470mm
Package dimensions(L x W x H)  5400 x 2200 x 1650 mm  &  3450 x 800 x 1050 mm
Net weight&Gross weight)  1550kg & 2280kg
Certification  CE

*Specifications subject to change without notice.
