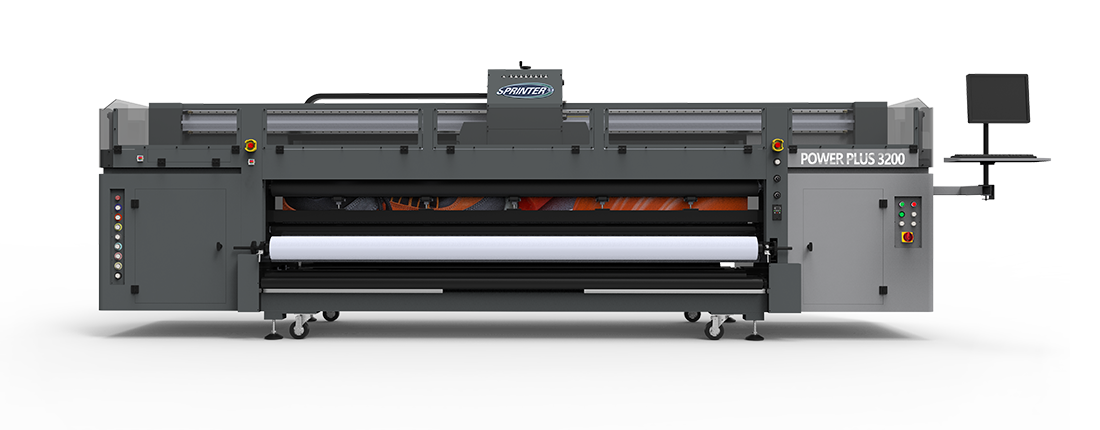

Power Plus 3200

3.2 Meter UV RTR Printer

Power Plus 3200 is a heavy duty UV Roll to Roll Printer with strong rubber rollers. It could print on different roll materials, specially performs well on strechable material printing.


Key benefits

  • Available to print for different roll materials
  • Perfect performance for stretchable material
  • Impressive productivity and stable working
  • Vivid image output with white and varnish color options
  • Energy-saving LED ink-curing system
  • Fast drying UV ink

Advantages

  • SPRINTER UV digital printing has been widely used in different industries including advertisement and signs, furnituring, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, UV printer could print on limitless materials like acrylic, glass, woods, MDF, steel, foarm boards, paper…
  • SPRINTER UV printer provides digital printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs.

Machine systems

  • User-friendly control system
  • Image ripping system
  • Auto media height detection
  • Anti-crush system
  • Statics eliminating system
  • Media suction platform
  • Auto ink volum alarm system
  • Backlit display during printing
  • External tables option
Watch video

Get to know it

Equipment

With the world's top partners, to create the most outstanding quality

With the world's top partners, to create the most outstanding quality

Rich printing solutions, Makes you RICH


Product dimension diagram


Features

UV-LED Curing System


Auto media height detection


Anti-crush Protection

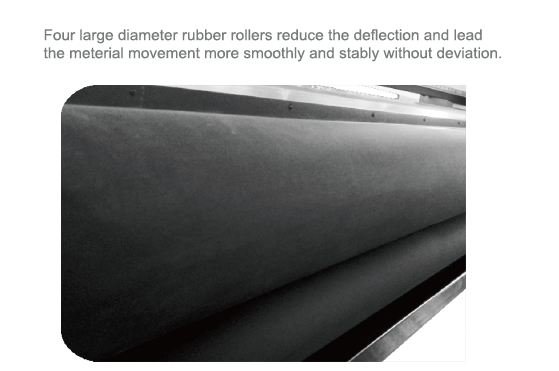

Four large diameter rubber


Statics Elimination


Flatbed Vacuum System


Ink detection alarm system

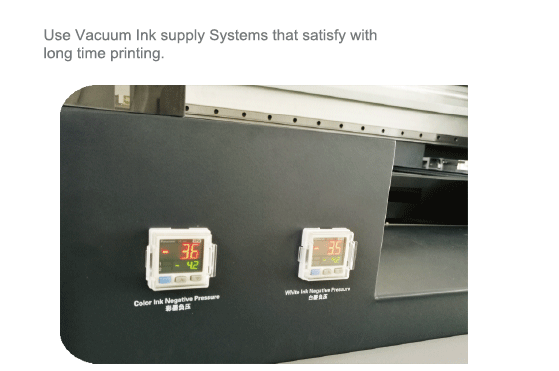

Use Vacuum Ink supply Systems


Applications

Embossed effects


Shiny Photos


Double-side seeing


Print 3D Image


Technical Specs

Model Power Plus 3200
Printhead RICOH GEN5 *12 Max. RICOH GEN6 *12pcs Max Konica 1024i 13 pl *12pcs Max Konica 1024a 6pl-18pl *12pcs Max
Resolution 600*600;600*900,600*1200,600*1800,600*2400 720*720,720*1080,720*1440
Printing speed 60㎡/hr CMYK x 3R 90㎡/hr CMYK x 3R 105㎡/hr CMYK x 3R
Color CMYK,White,Varnish, LcLm options
Ink Curing system LED lamp
Platform Vacuum media platform which divided into 4 zones to keep strong vacuum for media of different sizes
Media handling  4 rubbers Roll to Roll
Printing Width  upto 3200mm
Ink UV Curable ink
Color Validity 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink)
Ink capacity 1.5L drums, automatic alarm for ink volum shortage
Ink supply system Auto Negative ink supply
Media flex banner、Car sticker、cloth、Soft film、Fiberglass Mesh、3P polyester vinyle……
Control system  Window7/10  64bit  . RAM≥8G  . HDD≥500G  . SSD≥128G  . CPU≥Inte I5
RIP software Photoprint / ONYX / Caldera(Option)
Operation environment  Temp:: 18~26℃;Humidity:40~70%
Power supply Power Maximum:6KW; AC,50HZ/60HZ; 220v(±10%)>15A
Image format  Tiff,JPEG,EPS,PDF
Package Size  5860 x 1560 x 2150mm
Net weight &Gross weight  2300kg & 2800kg
Certification  CE

* Specifications subject may change without notice. Please confirm with sales representative for more details
