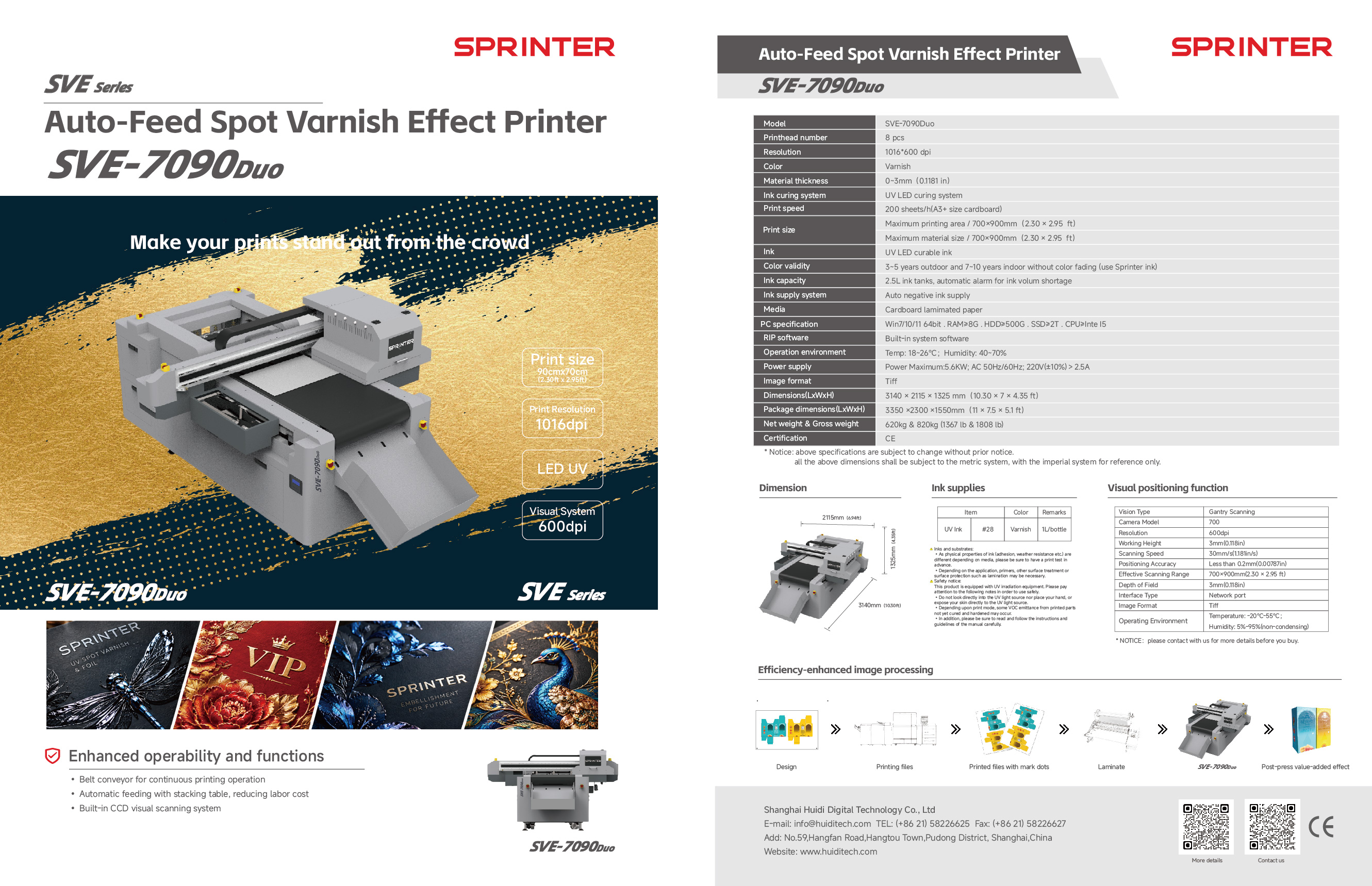

The SPRINTER SVE-7090Duo is a professional digital spot UV varnish machine. It features a working size of 70×90cm and supports simultaneous printing of two A3+ sheets. Equipped with an automatic feeding system and belt drive structure, it can precisely apply high-gloss UV coating onto selected areas of packaging substrates to create raised, shiny finish cured instantly by UV light. To add metallic foil effects, simply take the UV-enhanced print to a separate foiling machine (purchased independently). The combination of spot UV varnish and foil process can double the selling price of ordinary packaging.
The SPRINTER SVE-7090Duo adopts a high-precision AI vision scanning system to read registration marks on pre-printed and laminated substrates. Designed for small-batch and multi-sheet production, its 70×90cm working area supports dual A3+ sheets processing in one run. Thanks to the automatic feeding system and belt transmission structure, the machine can compensate minor sheet skew and distortion in real time. The AI vision dynamically calibrates the print position to lay spot UV varnish perfectly matched to pre-existing artwork.
It performs reliably on laminated coated stock, delivering crisp raised UV texture while keeping the protective lamination intact. Built for flexible short-run packaging jobs, this compact spot UV solution maintains excellent registration accuracy, cuts manual positioning time and improves overall production throughput.
1. High Visual Contrast:
Spot UV makes logos and key graphics “pop”, while cold foil delivers brilliant metallic shine – together they dominate shelf attention.
2. Luxurious Tactile Feel:
The raised varnish invites touch, creating an instant perception of quality and craftsmanship.
3. Brand Recall:
Consistent use of spot UV or foil on your brand marks builds a unique visual signature that customers remember.
4. Durable Protection:
Cured UV varnish resists scratches, moisture, and handling wear – packaging stays pristine.
5. Wide Industry Applications:
Vision type | Gantry Scanning |
Camera model | 900 |
Resolution | 600dpi |
Working height | 3mm(0.118in) |
Scanning speed | 30mm/s(1.181in/s) |
Positioning accuracy | Less than 0.2mm(0.00787in) |
Effective scanning range | 700×900mm(23.62 × 16.54 in） |
Depth of field | 3mm(0.118in) |
Interface type | Network port |
Image format | Tiff |
The SVE‑7090Duo is dedicated to spot UV varnish. To add foil effects, we recommend this simple workflow:
1.Apply spot UV varnish with the SVE‑7090Duo. You can flexibly arrange the sequence: either varnish before foil or foil before varnish, based on your production requirements.
2.Transfer the printed material to a separate foiling machine (hot or cold foil press) for metallic embellishment.
Item
| Inks | Remarks | |
|---|---|---|---|
UV Ink
| #28 | Varnish | 1L/bottle |
Inks and substrates:
Safety notice:
Model | SVE-7090Duo | |
Printhead number | 8 pcs | |
Resolution
| 1016*600 dpi | |
Color | Varnish | |
Material thickness
| 0~3mm（0.1181in） | |
Ink curing system | UV LED curing system | |
Print size
|
Maximum Printing Area
| 700×900mm（2.30 × 2.95ft） |
Maximum Material Size
| 700×900mm（2.30 × 2.95ft） | |
Print speed | 200 sheets/h(A3+ size cardboard) | |
Ink | UV LED curable ink | |
Color Validity | 3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink) | |
Ink capacity | 2.5L ink tanks, automatic alarm for ink volum shortage | |
Ink supply system | Auto negative ink supply | |
Media | Cardboard lamimated paper | |
PC specification | Win7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥2T . CPU≥Inte I5 | |
RIP software | Built-in system software | |
Operation environment | Temperature: 18℃~ 26℃ | |
Power supply | Power Maximum:5.6KW; AC 50Hz/60Hz; 220V(±10%)＞2.5A | |
Image format | Tiff | |
Dimensions(L x W x H) | 3140 × 2115 × 1325mm（10.30 × 7 × 4.35 ft） | |
Package dimensions(L x W x H) | 3350 × 2300 × 1550mm（11 × 7.5 × 5.1 ft） | |
Net weight&Gross weight) | 620kg & 820kg (1367 lb & 1808 lb) | |
Certification
|
CE
| |
* Notice: above specifications are subject to change without prior notice.
all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
| ||
