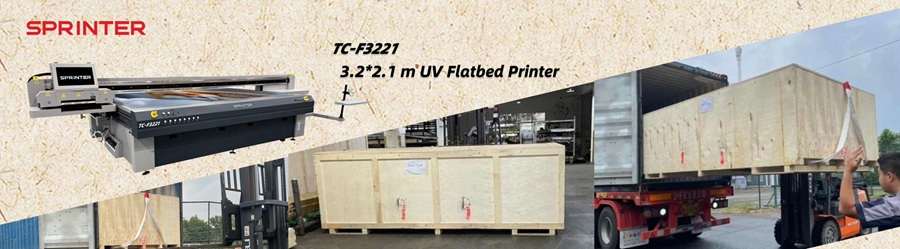

TrueColor TC-F3221

3.2*2.1 Meters UV Flatbed Printer

Budget-friendly,print-worthy!

Sprinter TC-F3221 is a large size flatbed printer to print on big materials. It a perfect choice for 3.2*2.1m board sheets printing. It has all color options and different print modes to work for different printing orders.

Key benefits

Large-format flatbed printing
4-row RICOH printheads for efficient printing
With metal encoder and XY-axis high-precision magnetic motor
Button-controlled electric valves optional foot switch air intake

Print Speed

Printhead Soleplate

Vacuum

The platform blower adopts frequency conversion control and blowing-vacuum suction conversion, allowing the suction force to be adjusted according to different materials.

Ink Supplies

Item		Color	Remarks
UV Ink	#6S3	cyan	1L/bottle
		magenta
		yellow
		black
		varnish
		white

Inks and substrates:

As physical properties of ink (adhesion, weather resistance etc.) are different depending on media, please be sure to have a print test in advance.
Depending on the application, primers, other surface treatment or surface protection such as lamination may be necessary.

Dimension

Features

UV-LED Curing System

LED curing doesn't produce much heat. So heat-sensitive media can be printed and cured without material damage. The curing power is adjustable. Besides, UV-LED curing system also has a longer lifetime. And it is maintenance easy and eco-friendly.

Auto Media Height Detection

It can measure the height of media and adapt to the height for print automatically. It can print media with thickness up to 110mm.

Auto Ink Lock

The ink valve system is opened and close dutomaticlly by solenoid valve control.

Media Locating Pins

There are pins around start point on flatbed. It is convenient to operate with a simple button. Media can be easily placed at the start point.

Anti-crush Protection

The carriage will stop moving when it hit subject in its way to protect the printhead. It has two sensors on both sides of carriage.

Statics Elimination

Statics exists on material, especial in a dry environment. With statics elimination system, it can efficiently decrease the route change of ink dropping caused by statics on material, ensure printing quality.

Flatbed Vacuum System

Media will be hold on flatbed with vacuum system flat and firmly in place. It flatbed has been divided into 4 different areas for media of different sizes.

Model	TC-F3221
Printhead	RICOH G5/G6 4 rows
Resolution	600, 900, 1200, 1800, 2400dpi
Color	CMYK, White / Varnish, LcLm(Option)
Material thickness	0~110mm(4.33in)
Vacuum suction	8 zones
Print size	Maximum Printing Area	3200*2100mm (10.49 x 6.89 ft)
Print size	Maximum Material Size	3220*2120mm (10.56 x 6.95 ft)
Ink	UV curable ink
Color validity	3~5 years outdoor and 7~10 years indoor without color fading (use Sprinter ink)
Ink capacity	1.5L ink tanks, automatic alarm for ink volum shortage
Ink supply system	Auto negative pressure ink supply system
Media	Glass、Acrylic、Ceramic、Metal、Paper、Wood、Leather、PVC、PP、PE...
PC specification	Window7/10/11 64bit . RAM≥8G . HDD≥500G . SSD≥128G . CPU≥Inte I5
RIP software	PhotoPrint /PrintFactory/Caldera(option)
Operation environment	Temperature 18℃~ 26℃ Humidity 40% ~ 70%
Power supply	Power Maximum: 7.5KW; AC,50HZ/60HZ; 220v(±10%)＞15A
Image format	Tiff,JPEG,EPS,PDF
Dimensions(L×W×H)	5545 x 3800 x 1560mm(18.19 x 12.46 x 5.11 ft)
Package dimensions(L×W×H)	6010 x 2970 x 1990mm(19.71 × 9.74 × 6.52 ft)
Net weight & Gross weight	2000kg(4409lb) & 2600kg(5732lb)
Certification	CE
* Notice: above specifications are subject to change without prior notice. all the above dimensions shall be subject to the metric system, with the imperial system for reference only.
